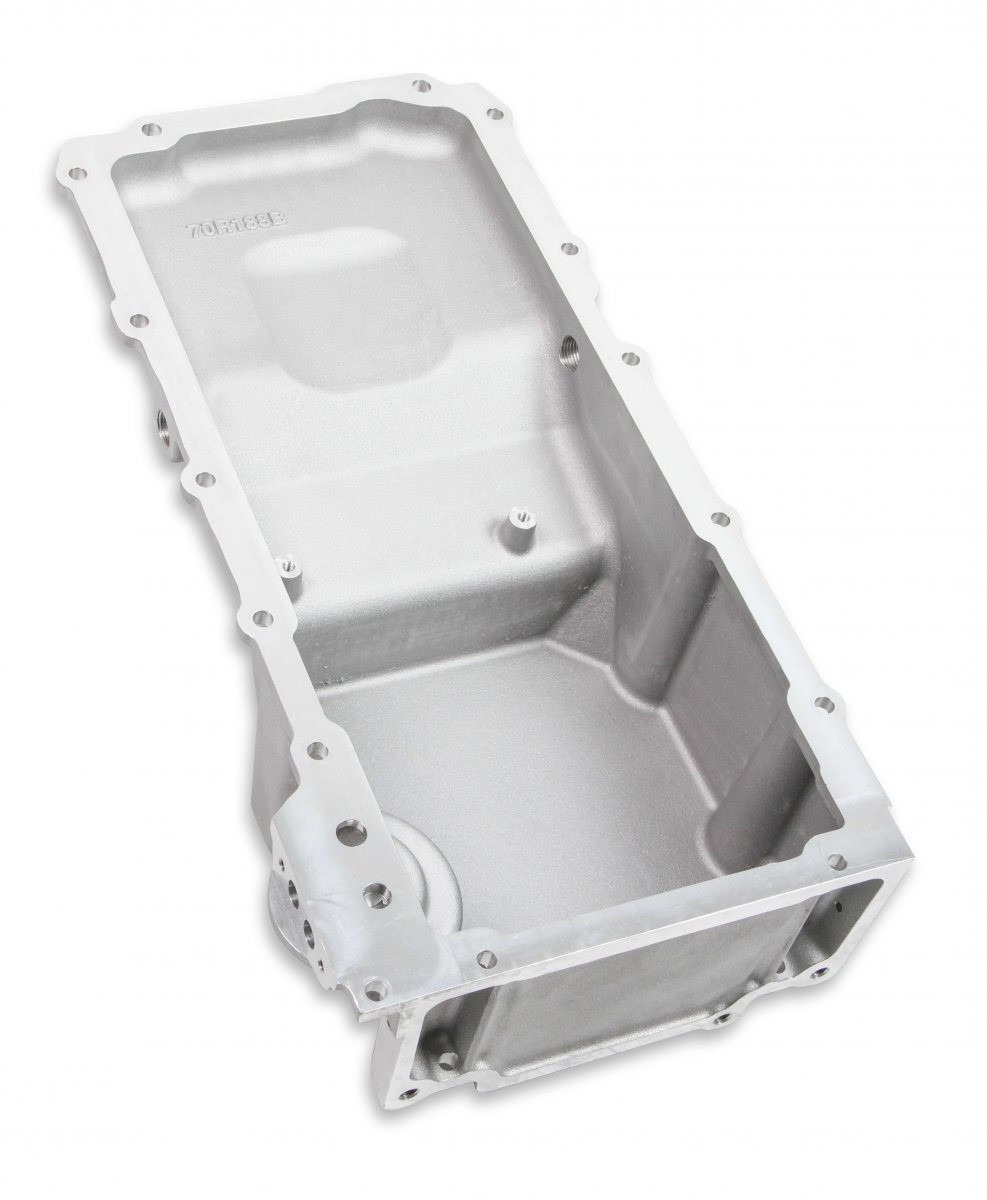

Holley GM LS-Swap oljetråg 1955-87

Holley GM LS-Swap oljetråg 1955-87.

Oljetråg för dig som monterar LS-motor i din 1955-87 GM-bil och behöver extra utrymme i framkant och har en strokad vevaxel upp till 4" i slag.

Tråget har också returportar (1/2" NPT) för oljeretur tex när man har Turbo.

Det här tråget är framtaget för att i första hand passa 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body och 1964-1972 A-body modeller.

• Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan.
• Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications.
• NOTE – Oil pan #302-3 will clear a 4.00” stroke crankshaft,

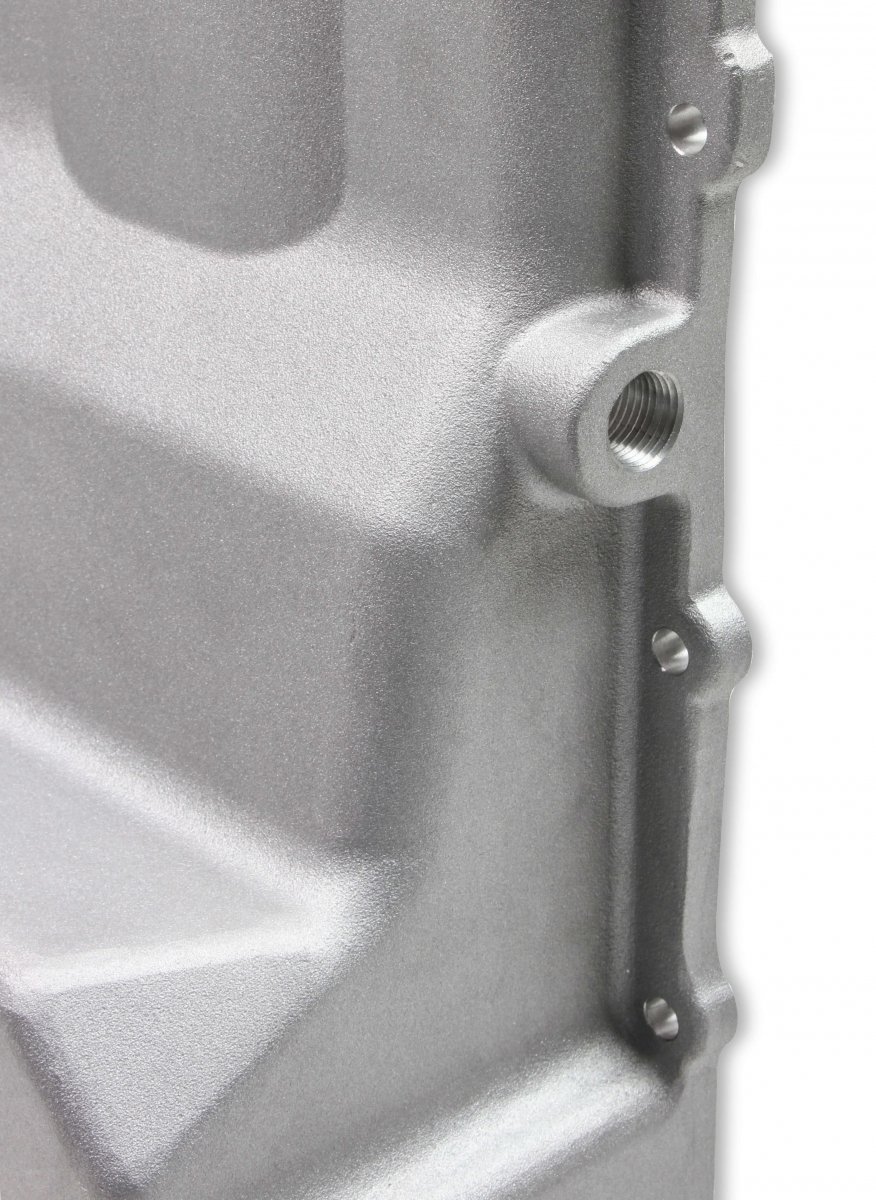

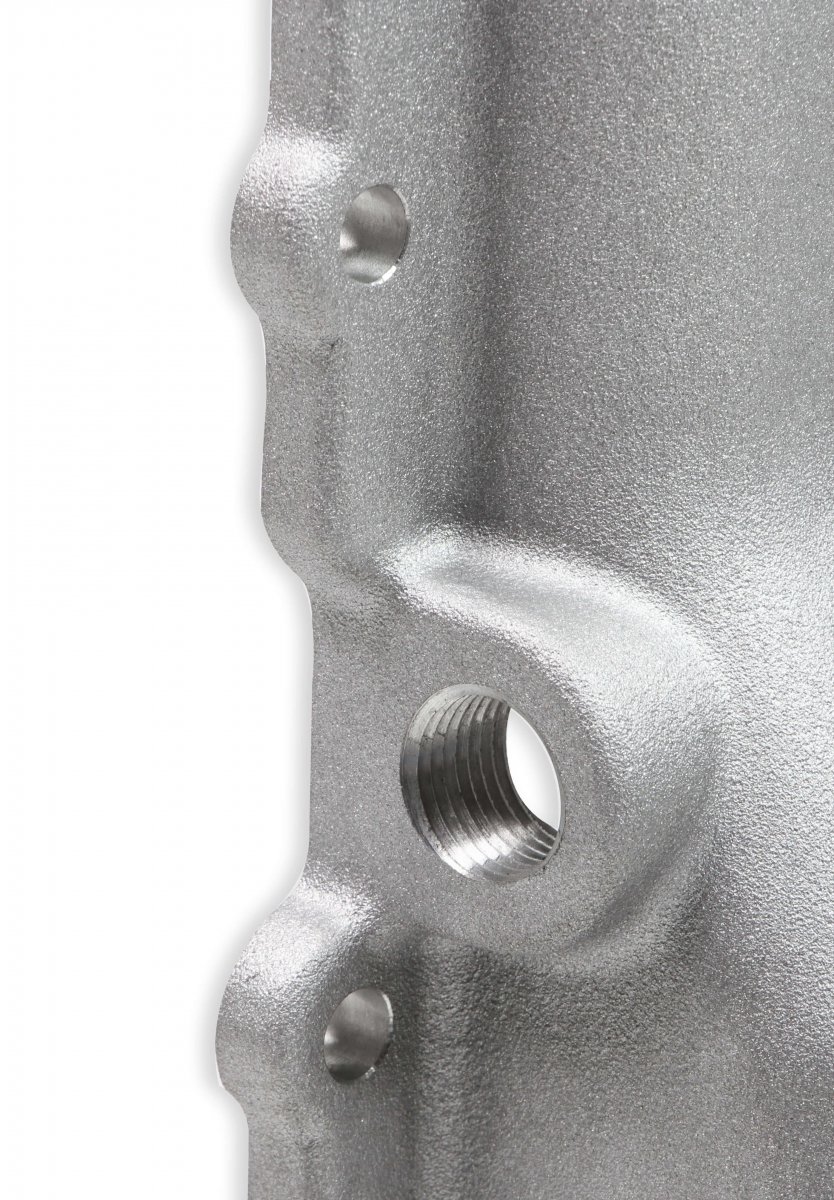

• Includes two ½-14” NPT oil return ports to provide a convenient oil return for turbochargers. (one port on each side),

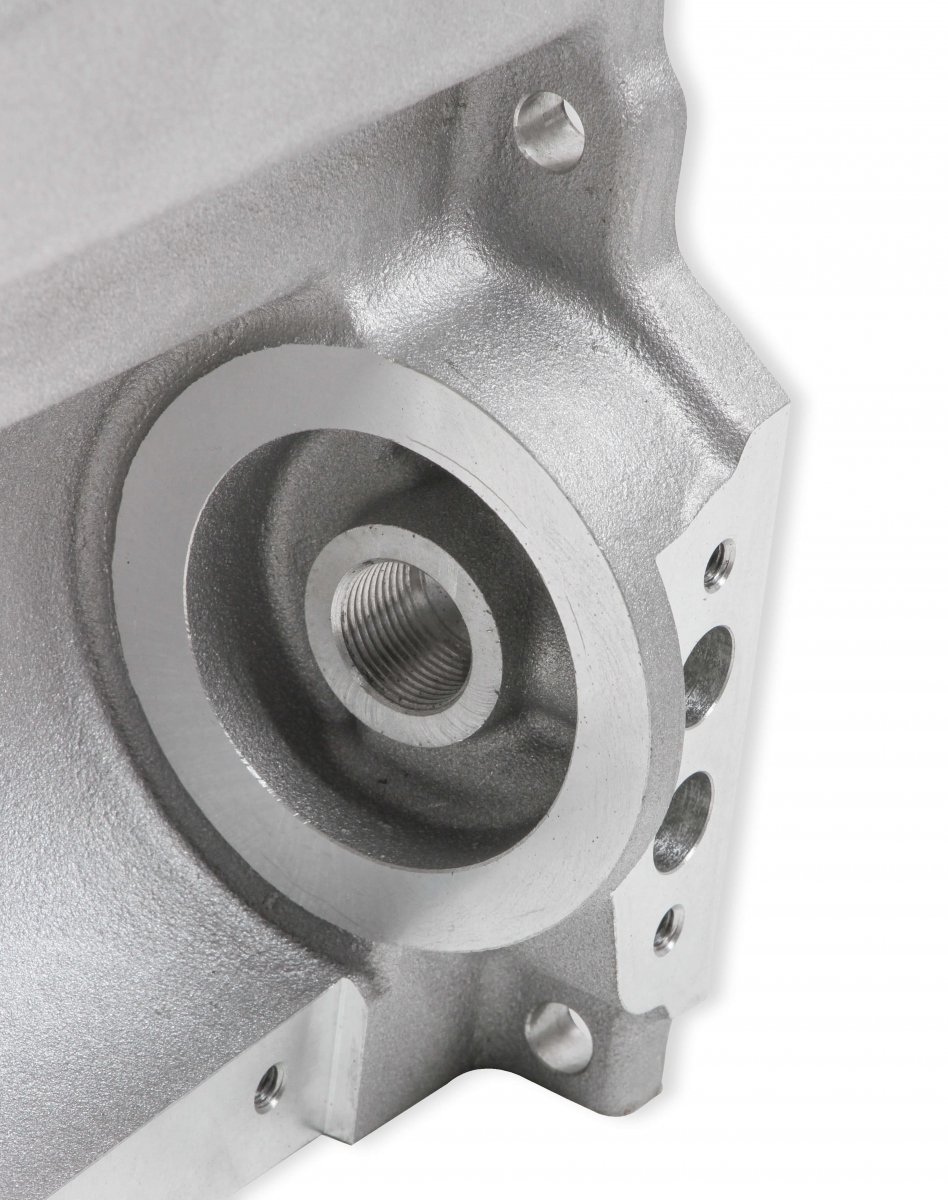

• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments,
• Maximum crankshaft stroke = 4.00"
• Sump Oil Capacity - 5.6 Quarts
• Total Oil Capacity with stock oil filter - 6.1 Quarts
• Oil Filter (AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent)
• Requires use of Holley 302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031)
• *Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type.
• ATTENTION! 302-3 is designed to use a GM "F-body" windage tray, GM P/N 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the instruction sheets showing the windage tray modifications and overall length required.
• ATTENTION! Additional Parts Needed (Oil Pan Gasket 6665G or GM® 12612350, High Quality RTV sealer, Oil Filter -AC Delco® PF48 or equivalent)
• Fabrikat: Holley.

Läs mer om tråget och vilka bilmodeller det passar till här!

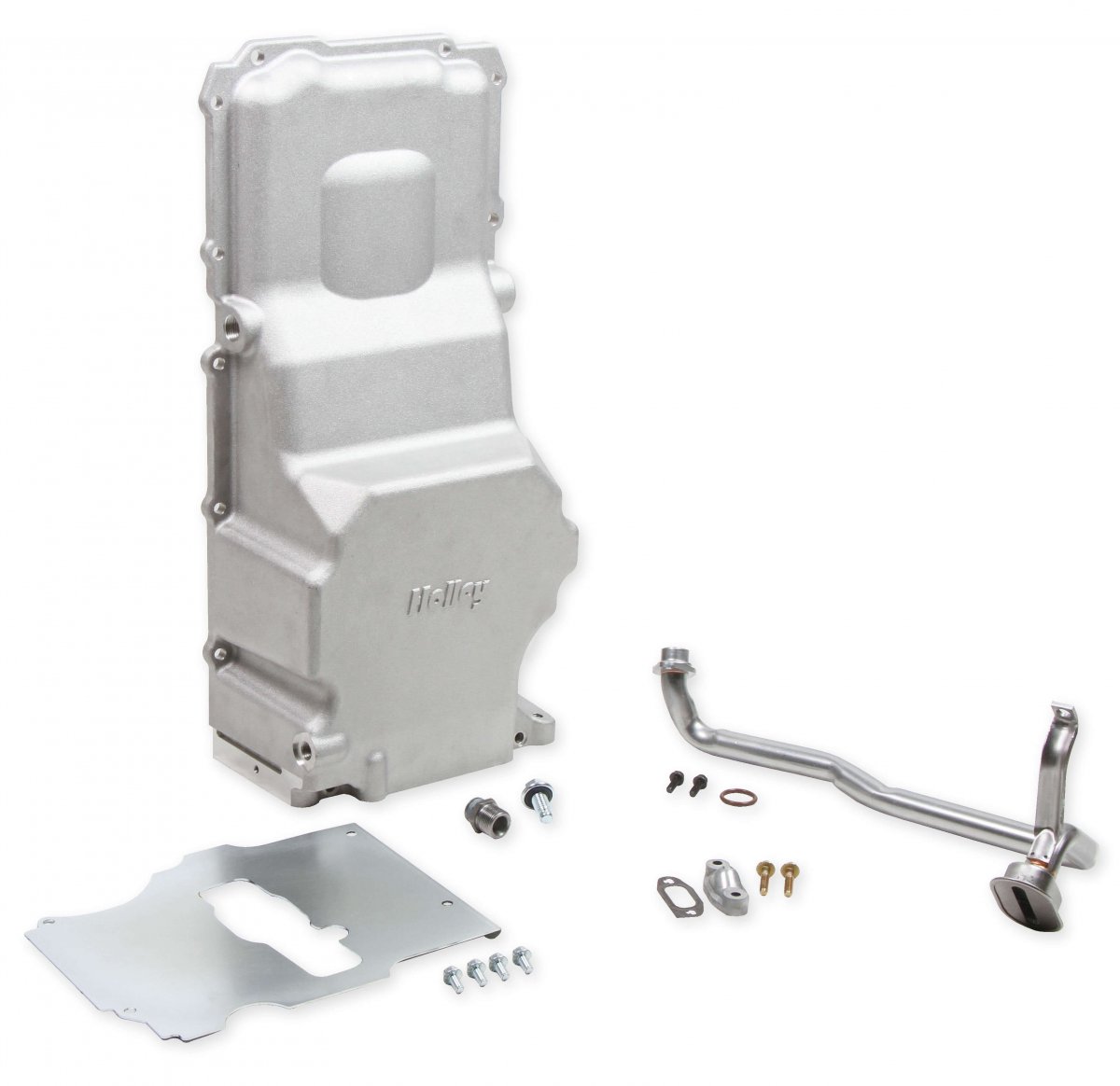

Säljs i kit med sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
