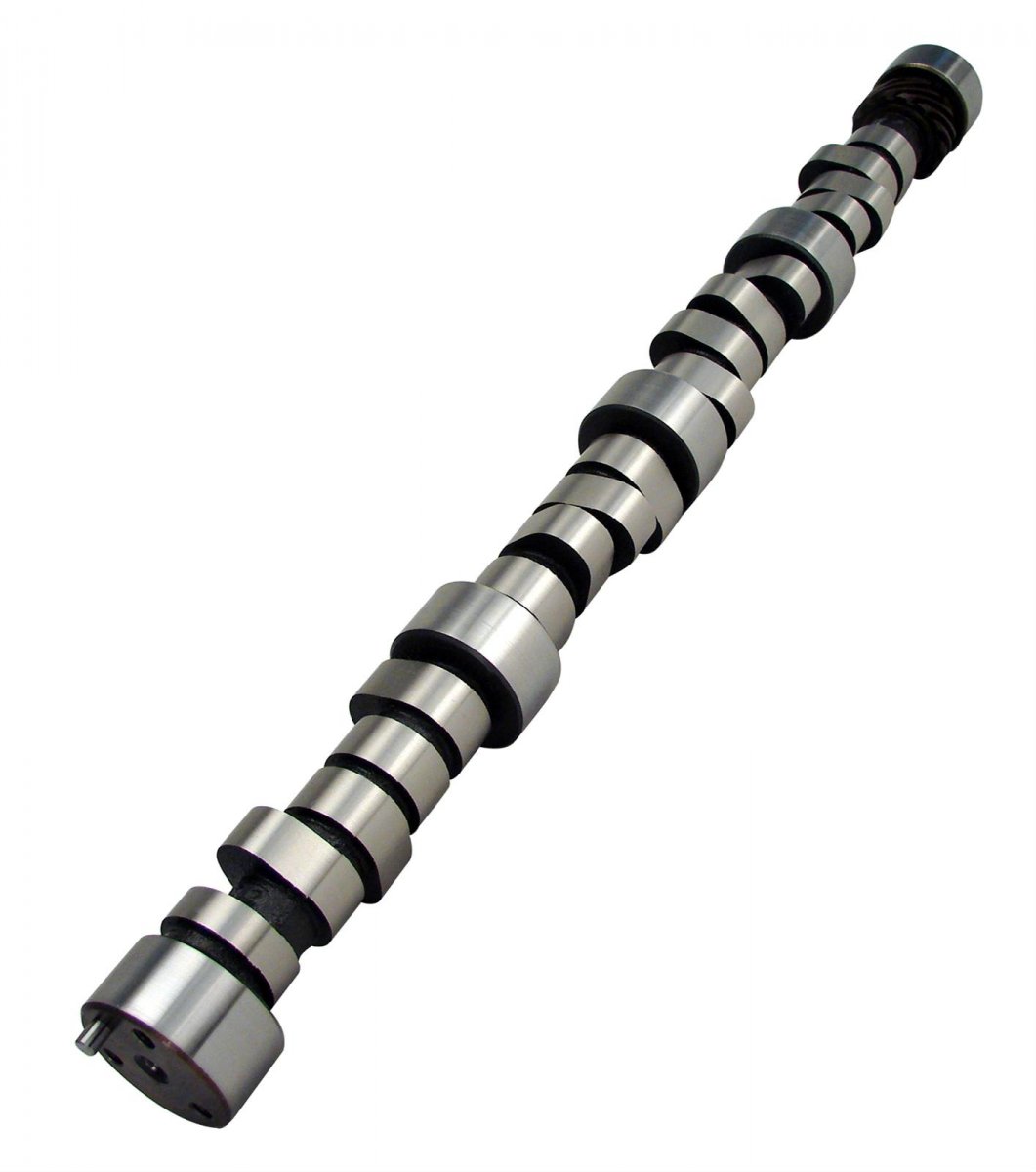

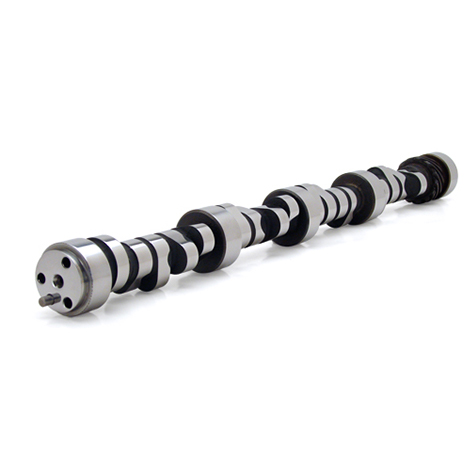

Comp Cams Xtreme Energy 236/242 Retro-Fit Hydraulic Roller, Chevy SB

Comp Cams Xtreme Energy 236/242 Retro-Fit Hydraulic Roller, Chevy SB.

Hydraulisk rullkam till Chevy SB.

Xtreme Energy 236/242 Hydraulic Roller Cam for Chevy Small Block. Very strong torque with excellent mileage and a smooth idle. Xtreme Energy Cams bridge the gap between Magnum street cams and race only cams. Xtreme Energy Cams provide increased torque, vacuum, response, and power while still providing quiet operation of the valve train and the durability required in daily driven vehicles.

Street/Strip applications, 9:1 compression ratio, intake, headers, 2800 stall converter, gears.

• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998),
• RPM Operating Range: 2,500-6,000,
• Cam Type: Hydraulic Roller,
• Camshaft Series: Xtreme Energy,
• Camshaft Gear Attachment: 3-Bolt,
• Usage: Street/Performance,
• Advertised Intake Duration: 288,
• Advertised Exhaust Duration: 294,
• Intake Duration at .050 Inch Lift: 236,
• Exhaust Duration .050 Inch Lift: 242,
• Intake Valve Lift: 0.52,
• Exhaust Valve Lift: 0.54,
• Lobe Separation: 110,
• Valve Timing Lift: 0.006,
• Exhaust Close ATDC: 33,
• Intake Open BTDC: 38,
• Exhaust Open BBDC: 81,
• Intake Close ABDC: 70,
• Make: Chevrolet,
• Lifter Type: Hydraulic Roller,
• Fabrikat: Comp Cams.

Notes:

• Retro-fit: Designed for early non-roller blocks. Requires thrust button and wear plate.
• Chevy 262-400ci Small Block 1955-98, For engines NOT originally equipped with a hydraulic roller camshaft.
• In order to use these camshafts in 1955-57 265ci blocks, it is necessary to machine a small groove in the rear main journal of the cam to allow oil flow to the top of the engine,
• Requires thrust button & wear plate.

Säljs styckvis enbart kamaxel.
