MSD Blaster HVC II U-Core tändspole

MSD Blaster HVC II U-Core tändspole.

MSDs senaste tändspole som är avsedd att användas ihop med MSD 6 tändboxar.

• Inductance (mH)    3.5
• Maximum Voltage    44,000
• Part Type    Ignition Coil
• Peak Current    450 4K
• Primary Resistance    0.16 82
• Product Type    Ignition Coil
• Secondary Resistance    630 82
• Spark duration    0.45 MESC
• Sub Category    Ignition Coil
• Turns Ratio    4.17,
• Fabrikat: MSD.

The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.

Features:

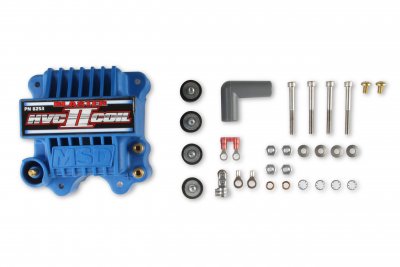

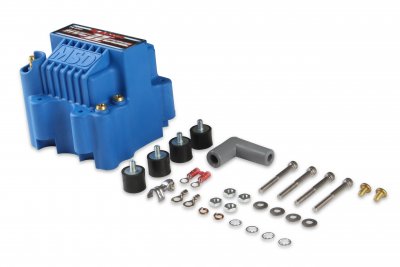

• Supplied with rubber shock mounts
• No CARB Exemption Order Number
• Dupont Rynite housing with isolated tower and brass primary terminals
• New U-core winding design produces more voltage and current
• Windings are encased in fracture resistant compound for vibration resistance
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Designed for high rpm, long duration applications using MSD 6 Series Ignitions

Säljs styckvis.
