MSD Street Pro-Billet fördelare Ford BB/Cleveland

MSD Street Pro-Billet fördelare Ford BB/Cleveland.

MSD Pro-Billet fördelare som passar Ford 351C, 351M, 400, 429, 460. Fördelaren måste användas ihop med en tändbox.

Small diameter distributor for 351C-460, includes iron gear and vacuum advance. Must be used with an MSD 6, 7 or 8-series ignition.

The distributor relies on MSD's race proven magnetic pickup and precision  reluctor to deliver accurate trigger signals to the MSD Ignition throughout  high rpm. The reluctor assembly is turned by a hardened steel shaft which  rides in a sealed ball bearing for high rpm stability and endurance.

MSD engineers fit all of their high performance distributor experience into  a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8" smaller than stock  Ford distributors providing extra room in front of the engine. The new MSD  cap features spark plug style terminals and is firmly screwed down to the  housing.

Mounted to the top of this shaft is a fully adjustable mechanical advance  assembly. The rate at which the chromoly assembly advances the timing is  easily controlled by changing the supplied advance springs and stop bushing  for total advance.

Features:

• Mechanical advance assembly can be locked out for crank trigger systems
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Vacuum advance canister for improved economy (can be locked out)
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Nylon pads ensure smooth operation of the advance weights

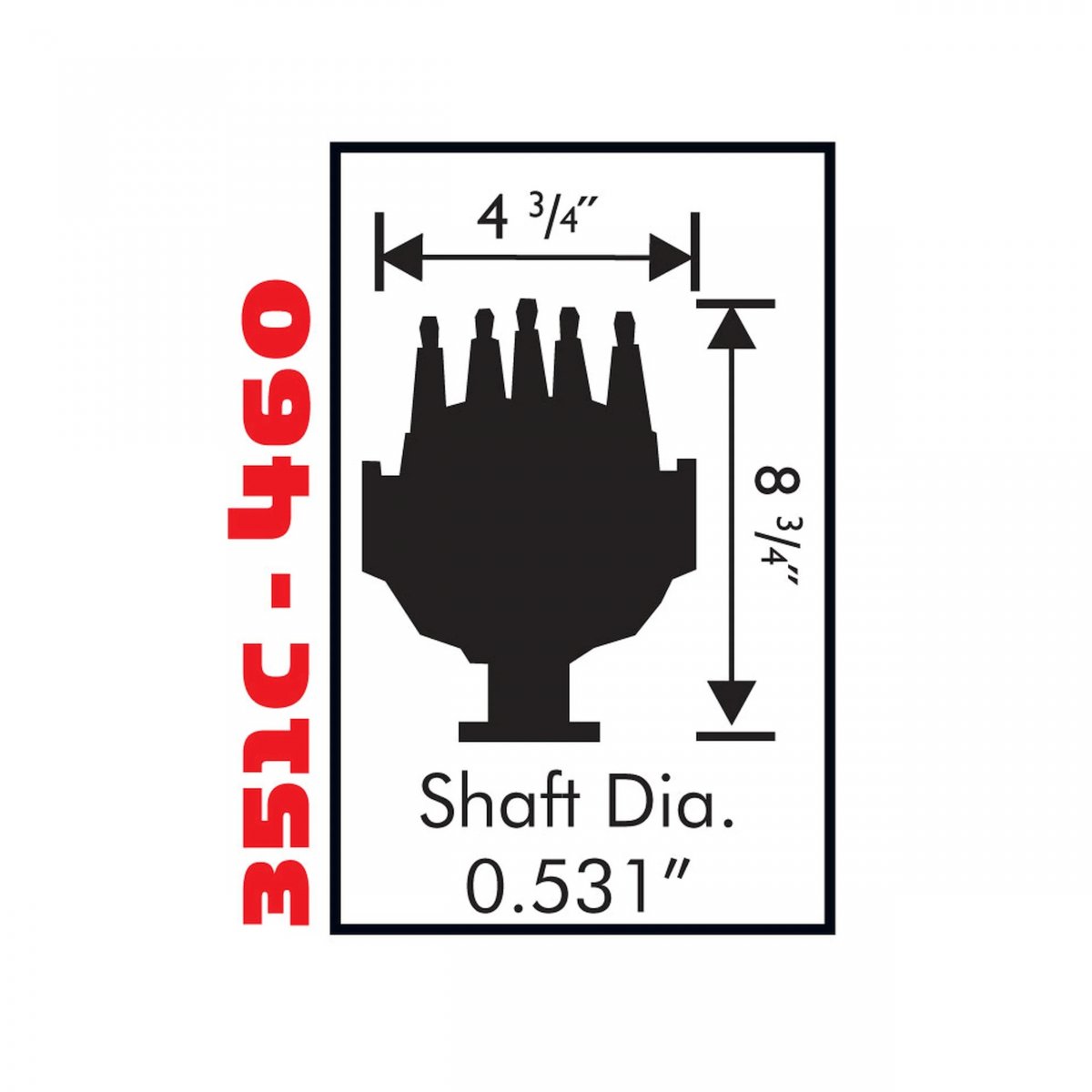

• Billet housing is 5/8” smaller in diameter than stock Ford distributors
• Must be used with an MSD Ignition Control
• CNC machined billet aluminum housing and billet aluminum base

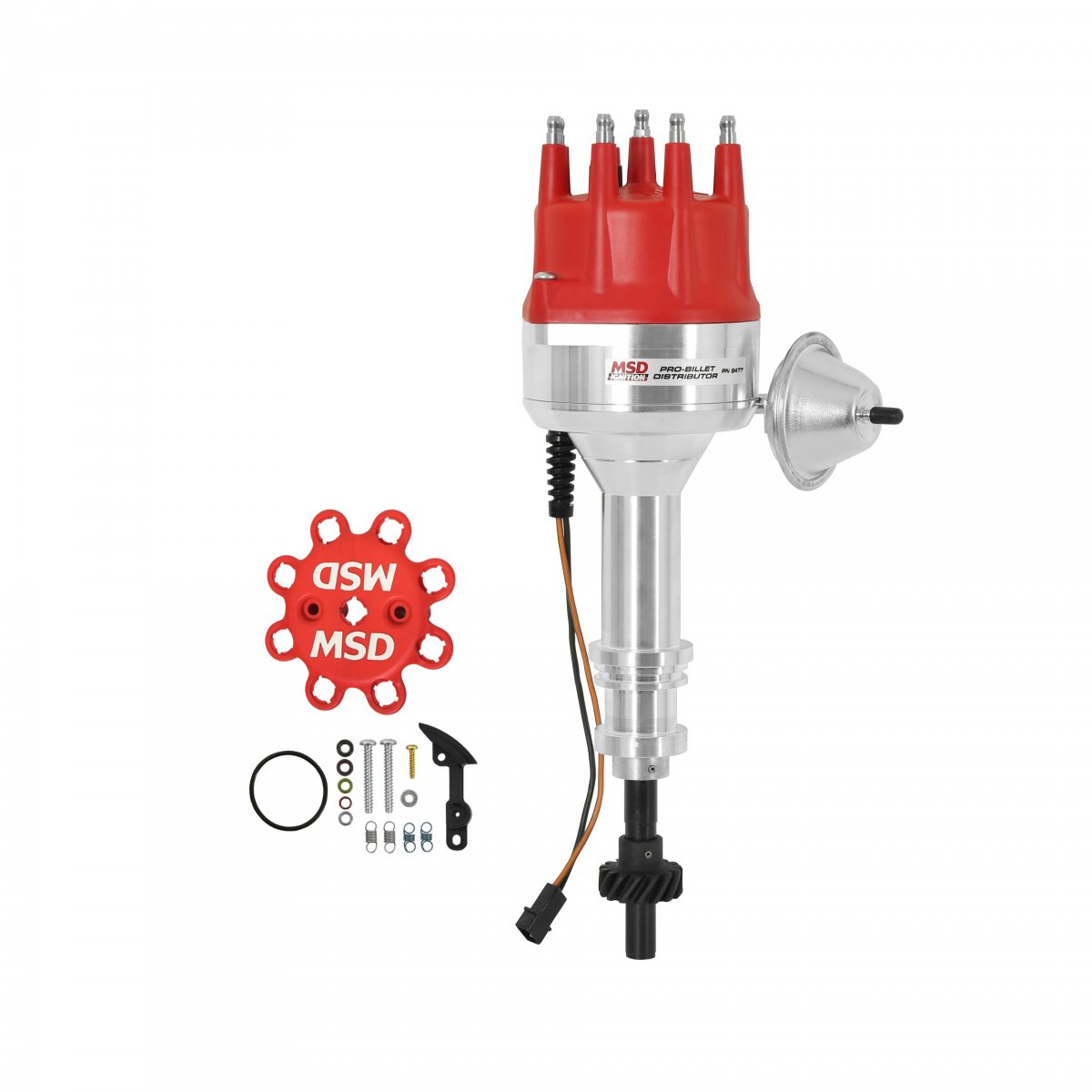

• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Advance weight pins are staked and tig welded to the plate
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Color    Red
• Distributor Cap Included    Yes
• Distributor Type    Magnetic Pickup
• Emission Code    1
• Engine    Ford 351C-460
• Gear    Cast Iron
• Gear Material    Cast Iron Melonized QPQ Coated
• Grade Type    Performance
• Ignition Box Required    Yes
• Ignition Coil Included    No
• Ignition Rotor Included    Yes

Säljs styckvis.
