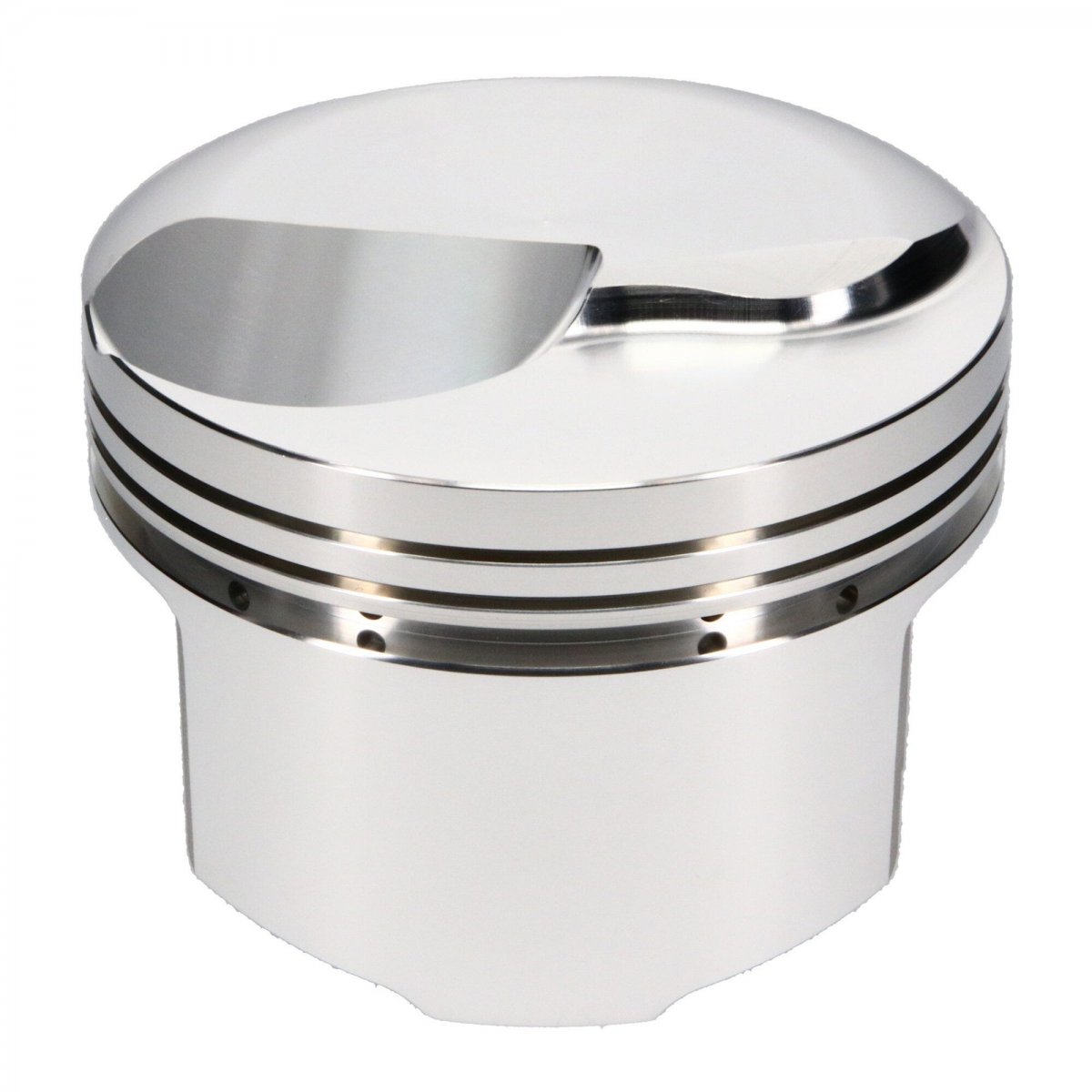

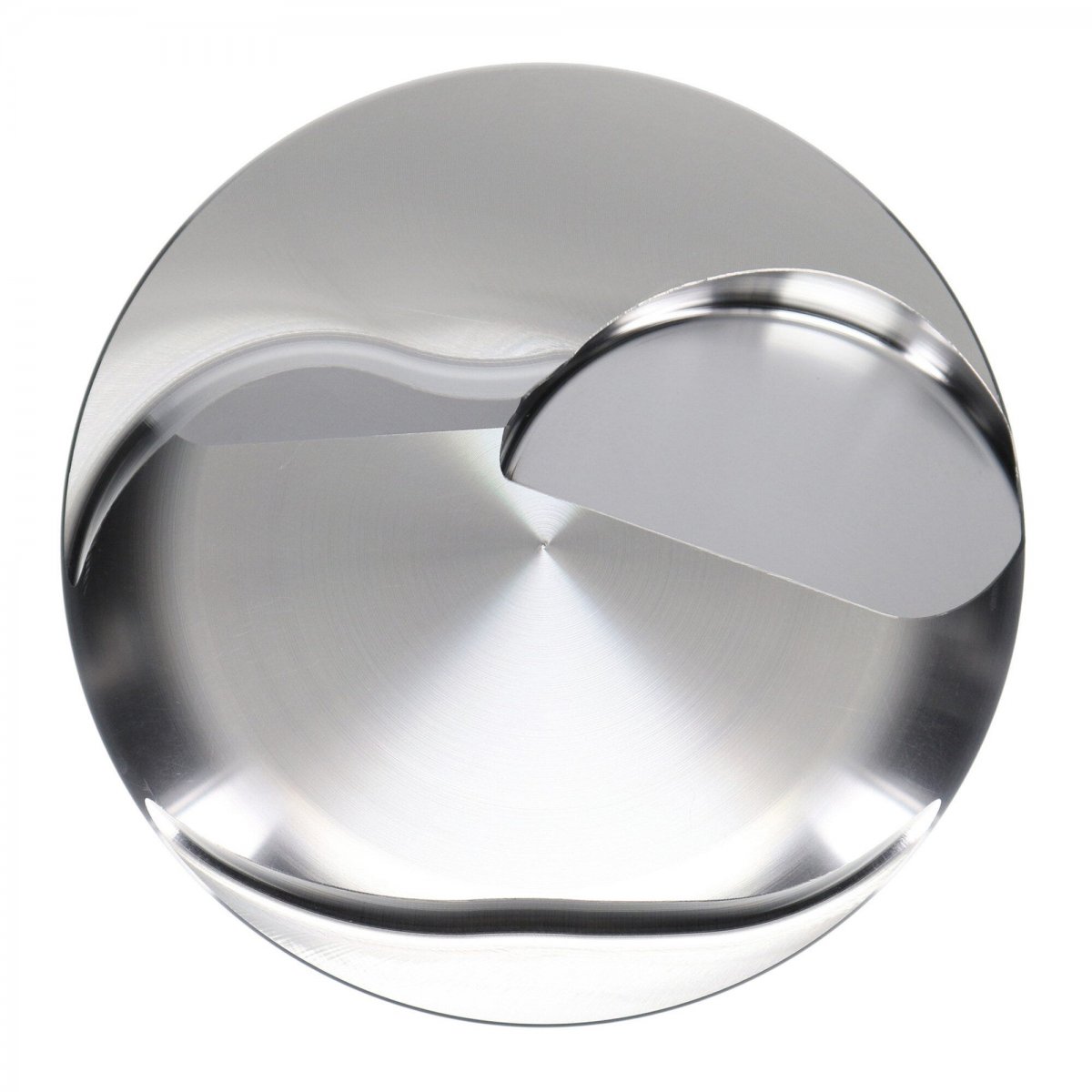

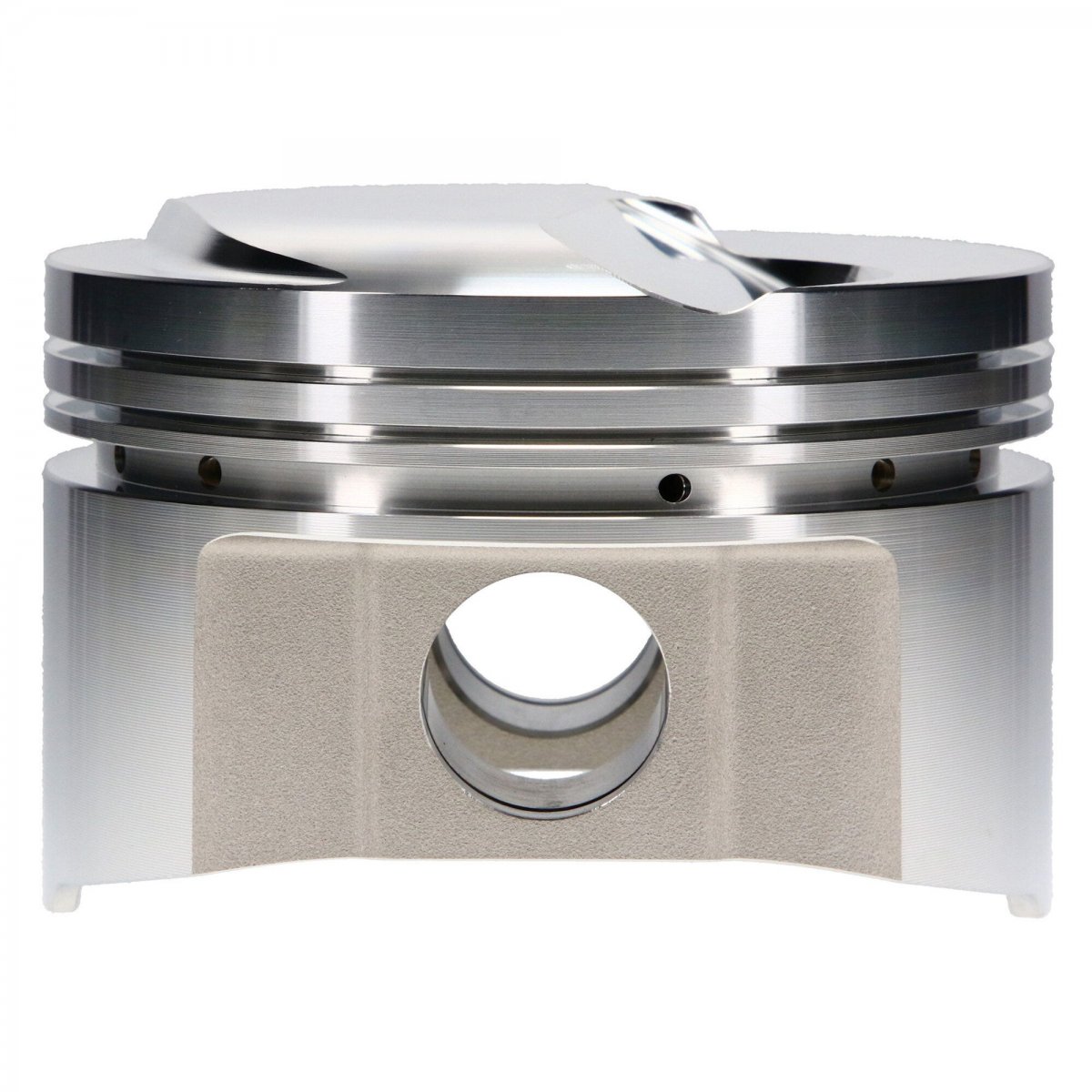

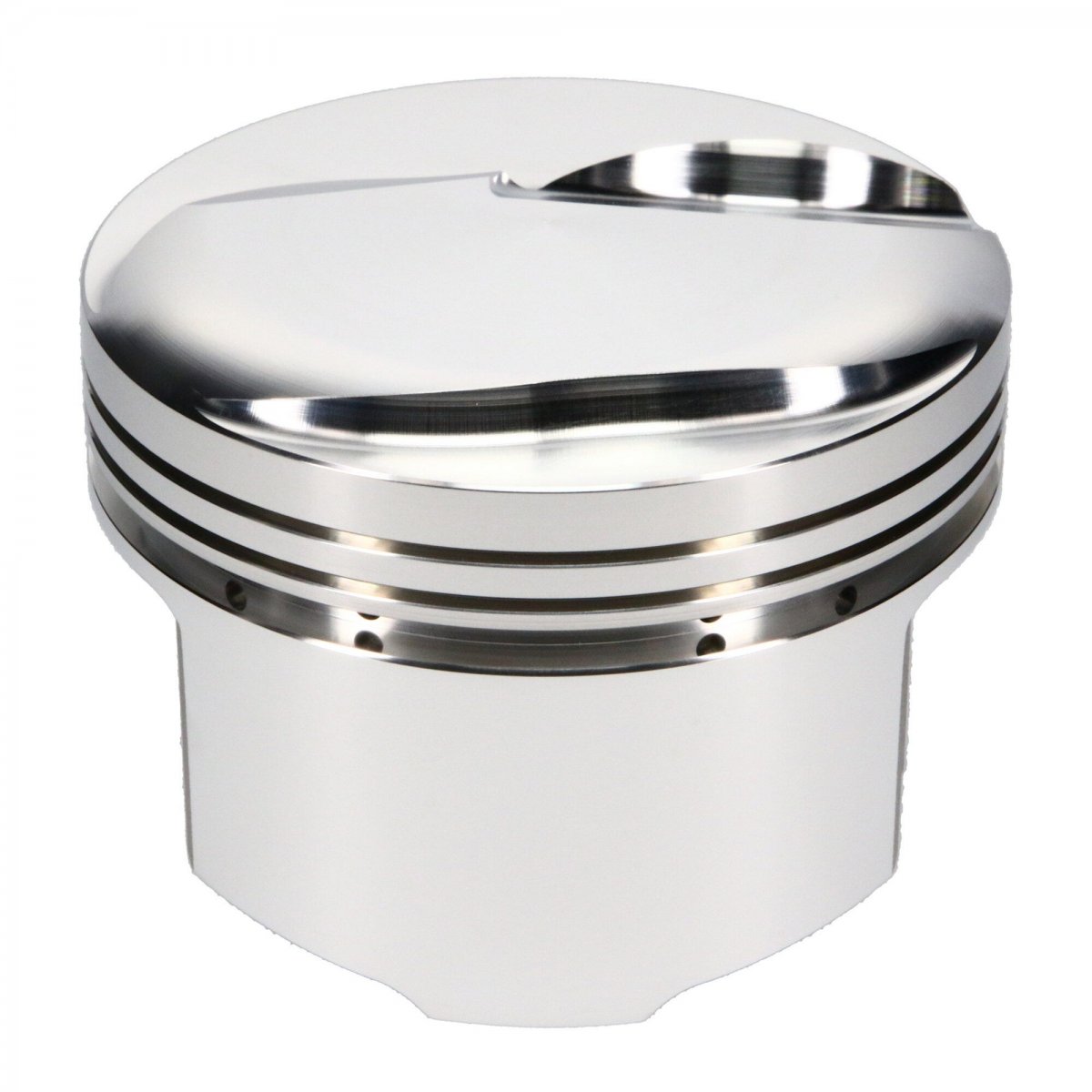

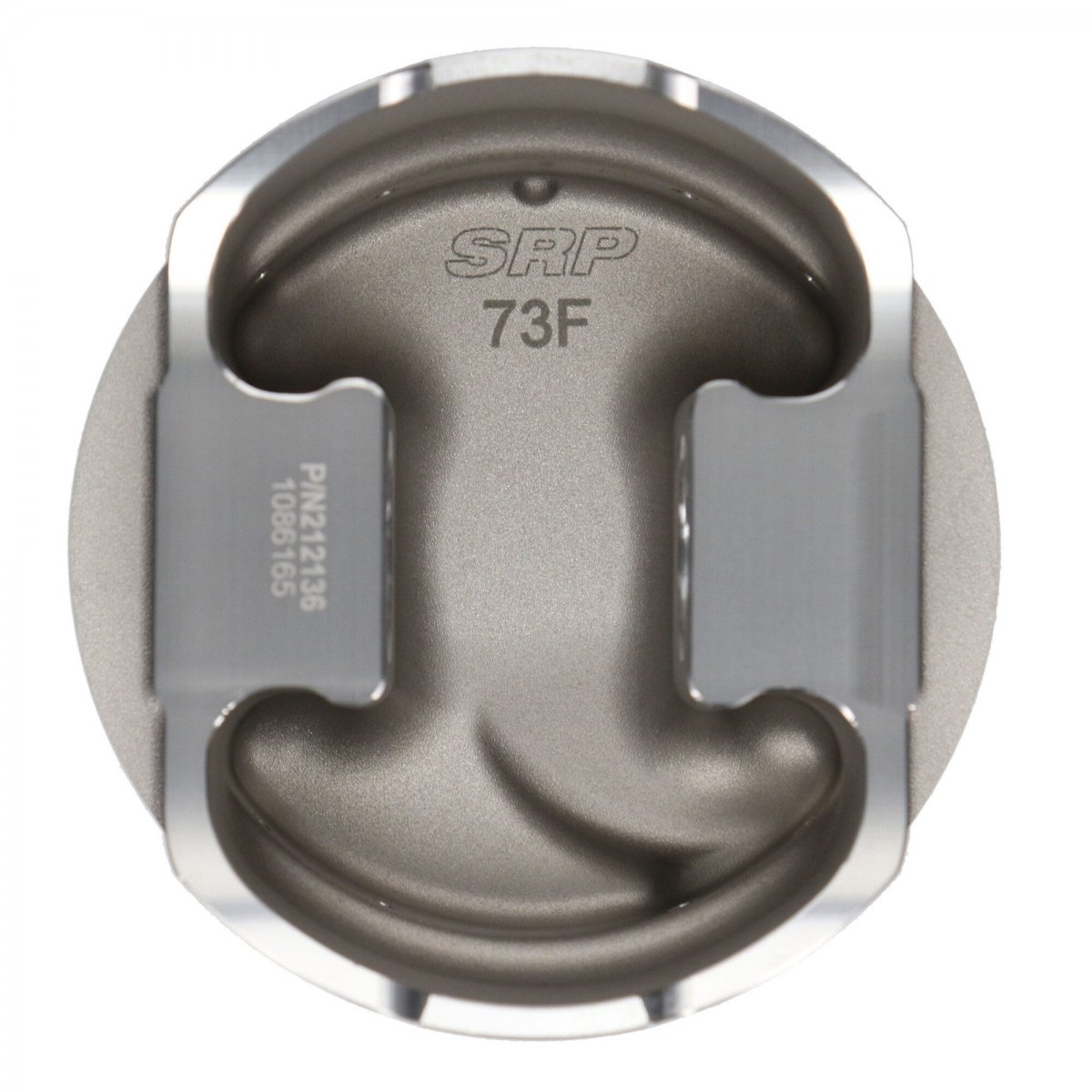

JE Pistons (SRP) smidd kolvsats 4,280" x 1,645", Chevy BB.
Smidda kolvar designade för att passa Edelbrock Performer RPM (110 & 112 cc) topplock, samt de flesta Open Chamber-toppar från GM, Dart, Brodix.
| Make | Chevrolet |
|---|
| Engine | BIG BLOCK CHEVY |
|---|
| Bore Diameter | 4.280" |
|---|
| Compression Height | 1.645" |
|---|
| Stroke | 4.000" |
|---|
| Rod Length | 6.135" |
|---|
| Piston Head Type | Dome |
|---|
| Piston Volume, Dome | +23 cc |
|---|
| Cylinder Head | OPEN CHAMBER |
|---|
| Piston Pin Outside Diameter | 0.990" |
|---|
| Piston Pin Inside Diameter | 0.690" |
|---|
| Piston Pin Length | 2.930" |
|---|
| Piston Pin Wall Thickness | 0.150" |
|---|
| Retainer Lock Part Number | 990-042-CS |
|---|
| Ringset Included | Nej |
|---|
| Top Compression Ring Thickness | 0.064 (1/16") |
|---|
| Second Compression Ring Thickness | 0.064 (1/16") |
|---|
| Oil Ring Thickness | 0.188 (3/16") |
|---|
| Piston Material | 4032 |
|---|
| Forging Type | FSR |
|---|
| Piston Avg Weight | 622 Gram |
|---|
Compression Ratio:
- 112cc 10.5:1
- 118cc 9.9:1
- 124cc 9.5:1
Sats om 8 kolvar (kolvbult, Spirolox eller kolvringar ingår ej).
