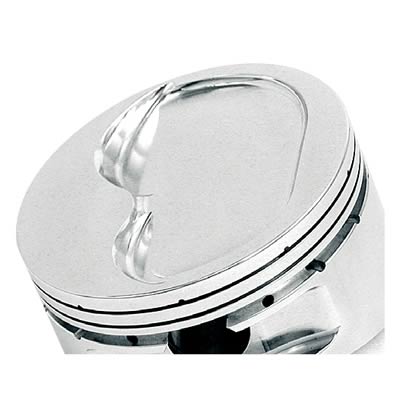

JE Pistons smidd kolvsats -14,5cc dish, 4,030", Chevy SB (350)

JE Pistons smidd kolvsats -14,5cc, 4,030 borr, Chevy SB (350).

• Bore (in): 4.030"
• Bore (mm): 102.362mm,
• Stroke: 3.500",
• Engine Stroke Type: Stock,
• Rod Length: 5.700",
• Piston Style: Inverted dome,
• Inverted dome depth: 0,120",
• Piston Material: Forged aluminum,
• Compression Height (in):1.550",
• Piston Head Volume (cc): -14.50cc,
• Wrist Pin Style: floating,
• Pin Lock Rings Included: Yes, 32 Spiro locks,
• Wrist Pin Included: Yes,
• Pin Diameter (in): 0.927",
• Piston Ring Thickness:1/16 in. x 1/16 in. x 3/16 in,
• Piston weight: 471 grams,
• Piston material: 2618,

Compression Ratio:

• 58cc: 10.0:1
• 64cc: 9.3:1
• 76cc: 8.3:1

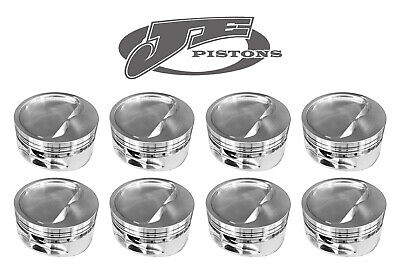

Sats om 8 kolvar, 8 kolvbultar, 32 Spiro-lox.
