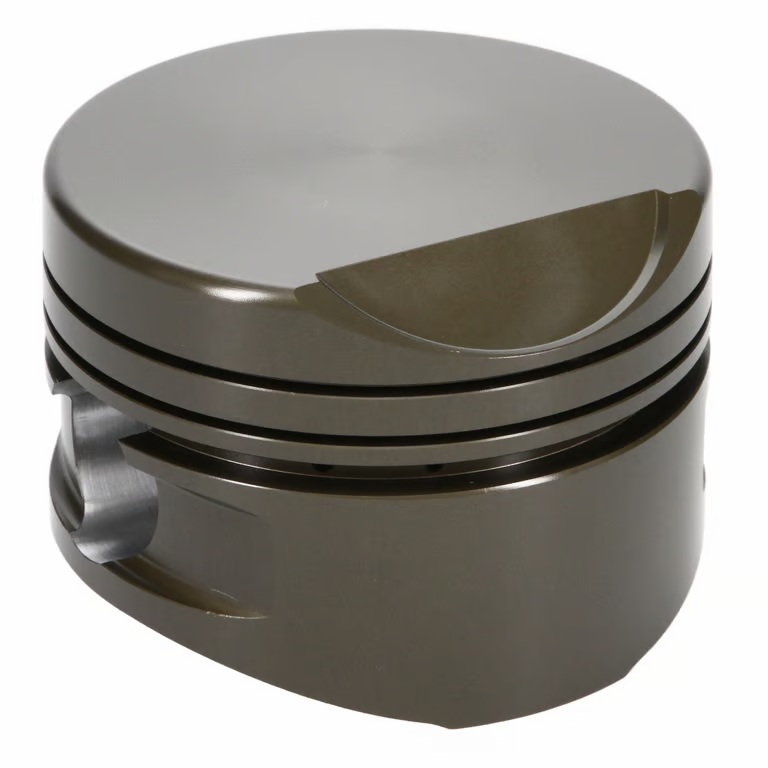

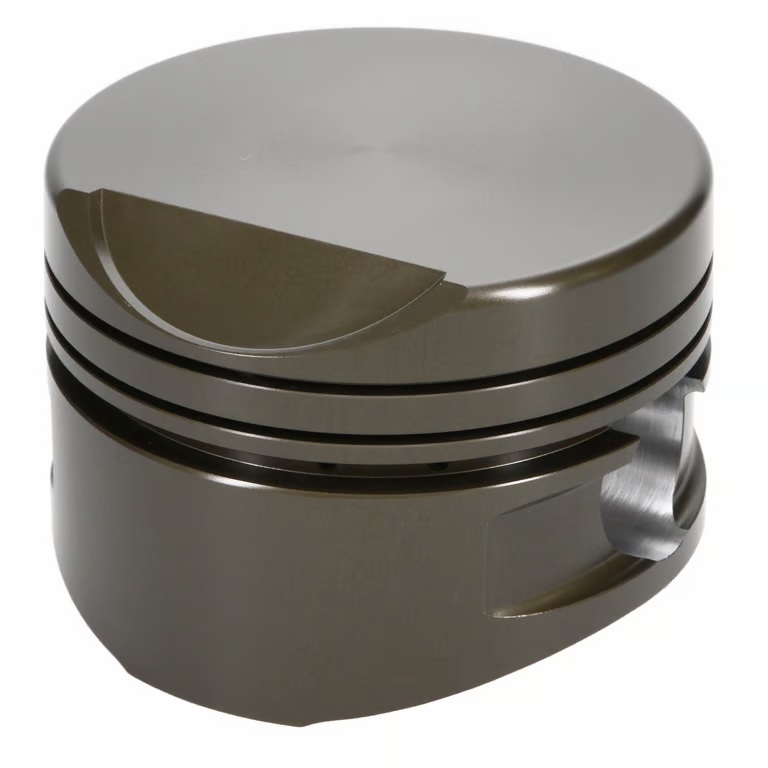

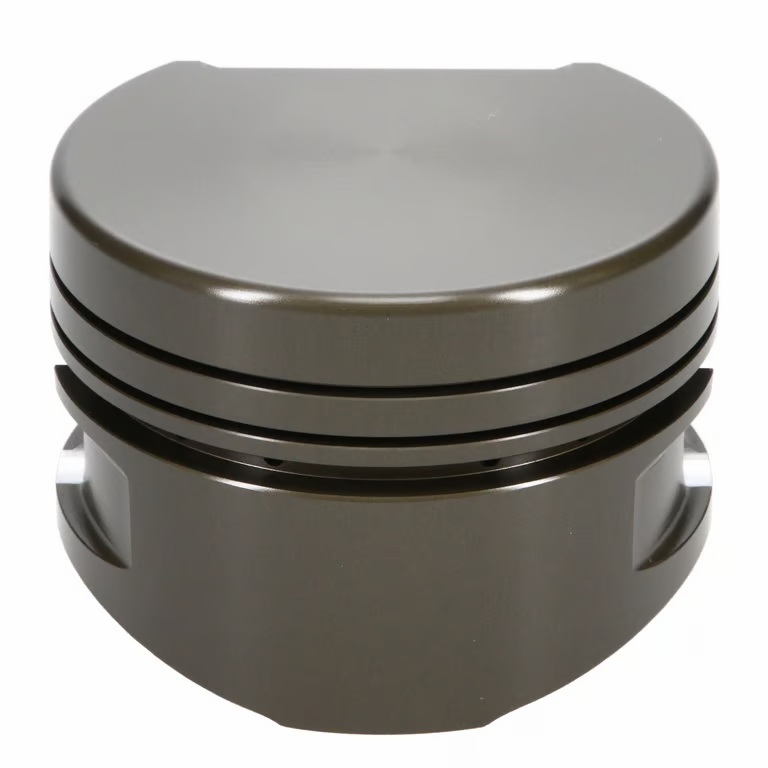

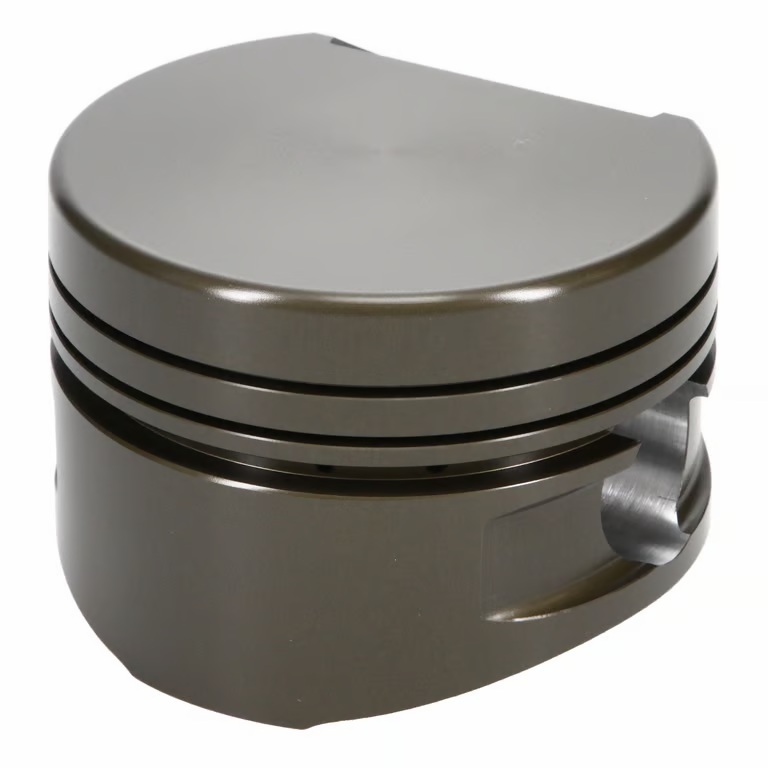

JE Piston kolv 4.187" x 1.690", 0.00 CC, Chrysler Hemi Top Fuel

JE Piston kolv 4.187" x 1.690", 0.00 CC, Chrysler Hemi Top Fuel.

• Piston Series: JE Pistons
• Cylinder Head: 426 HEMI
• Bore Diameter: 4.187 IN
• Piston Head Type: Flat
• Compression Height: 1.690 IN
• Piston Volume: 0.00 CC
• Piston Material: 2618
• Piston Quantity: 1
• Forging Type: Round
• Piston Average Weight: 807 GR
• Ring Set Included: No
• Top Compression Ring Thickness: 0.0750 IN
• Second Compression Ring Thickness: 0.0660 IN
• Oil Ring Thickness: 0.19 IN
• Wrist Pin Length: 3.900 IN
• Intake Depth: 0.515 IN
• Intake Diameter: 2.500 IN
• Intake Angle: 34.5
• Top Groove Width: 0.07500 IN
• 2nd Groove Width: 0.06600 IN
• Oil Groove Width: 0.19000 IN
• Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
• Designed specifically for each engine and use application to provide optimized performance durability
• Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
• Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
• Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
• Made 100% in the USA,
• Fabrikat: JE Pistons.

Notice: Product Images may differ from the actual product. Image may be a representation of this item.

Säljs styckvis enbart kolv (kolvbult, ringar etc ingår inte).
