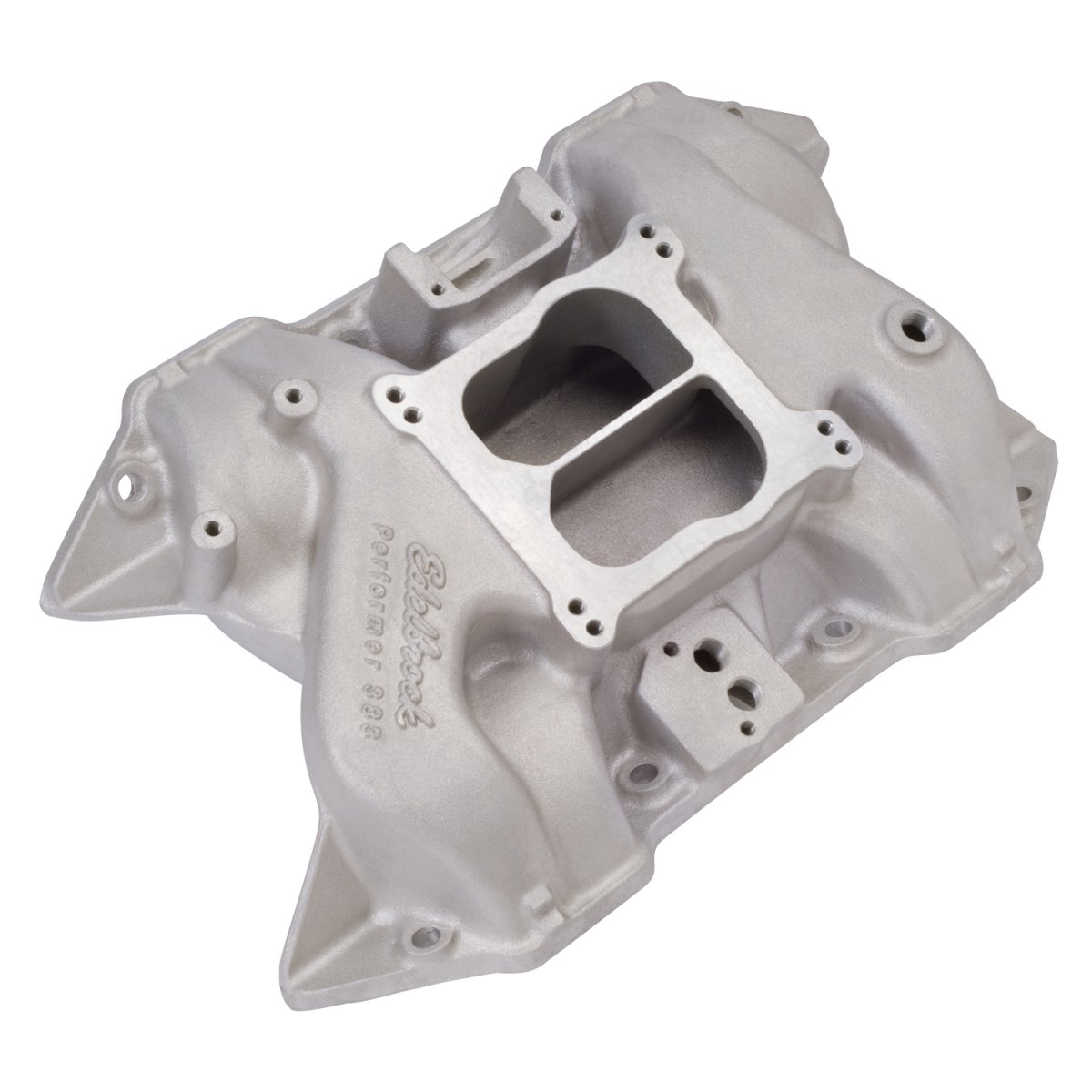

Edelbrock Performer 383 insug Mopar B-series 1958-79

Edelbrock Performer 383 insug Mopar B-series 1958-79.

Aluminiuminsug av Dual plane-modell från Amerikanska Edelbrock som ger högre effekt och bättre vrid än motsvarande original insug. Insuget passar under de flesta motorhuvar och original 4-portsförgasare eller 4150-förgasare (typ Holley, Edelbrock) passar.

Insuget passar Mopar BB (B-series, 383/400)

• Part Type: Engine Intake Manifold
• Manufacturer: Edelbrock
• Application: Application Specific
• Series: Performer
• Material: Aluminum
• Finish: Satin
• Gasket Or Seal Included: No
• Vehicle Model: Chrysler BB B-series (383/400)
• RPM Range: Idle-5500 RPM
• Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L)
• Recommended intake gasket: Edelbrock # 7225
• Manifold height: A-3.65", B-4.35", measured to engine block
• Carb pad height: 4.00"
• Carb recommendations: OEM 4-Bbl, Edelbrock Thunder AVS or Performer Series 600-800cfm.Use # 1481 or # 1483 throttle/transmission lever kit.
• Port exit dimensions: 1.14" x 2.12"
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
• Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
• Rear Maximum Height: 4.350 in
• Single Or Dual Plane Type: Dual,
• Fabrikat: Edelbrock Performer.

Säljs styckvis.
