Edelbrock insug RPM Air Gap, Chevy SB

Edelbrock insug RPM Air Gap, Chevy SB.

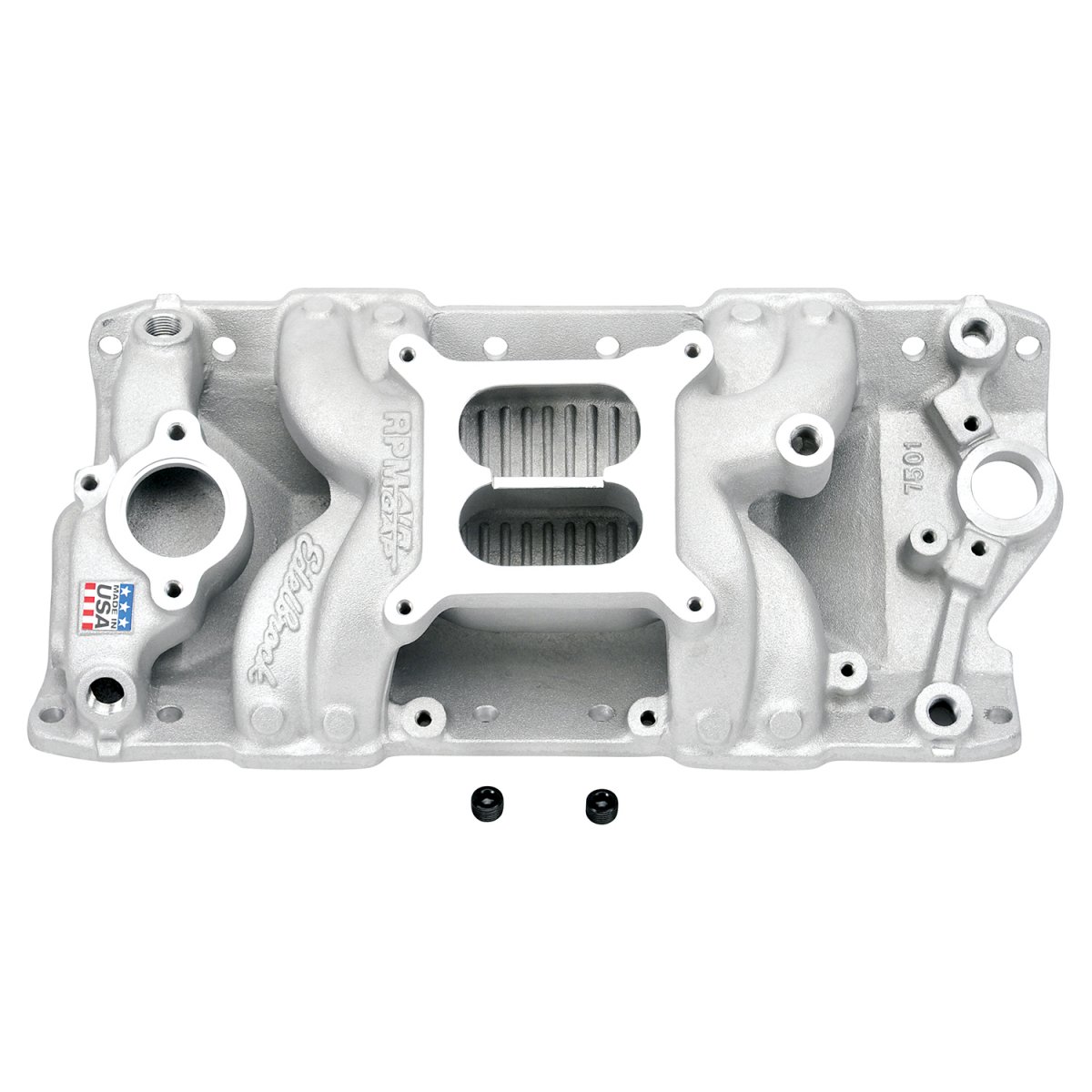

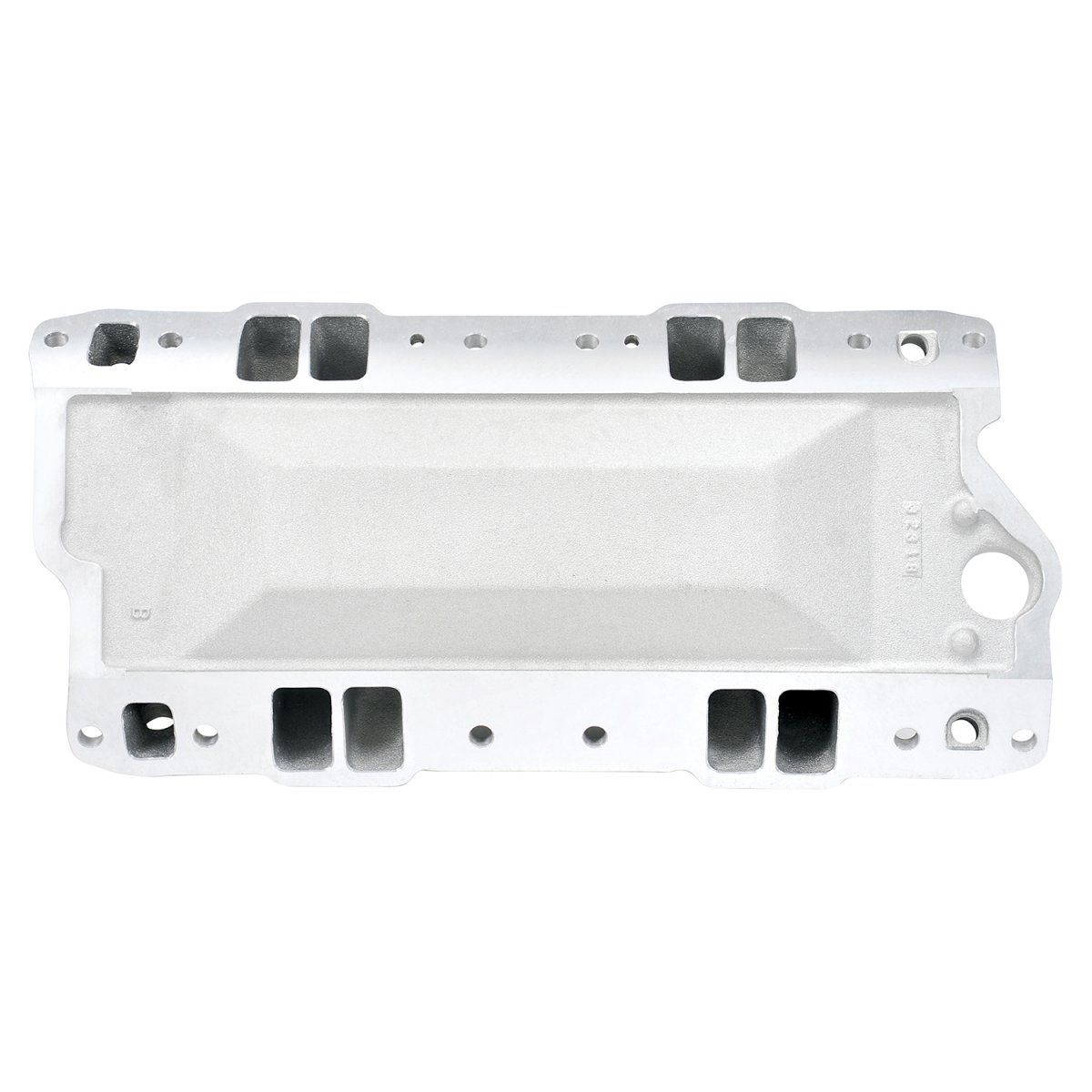

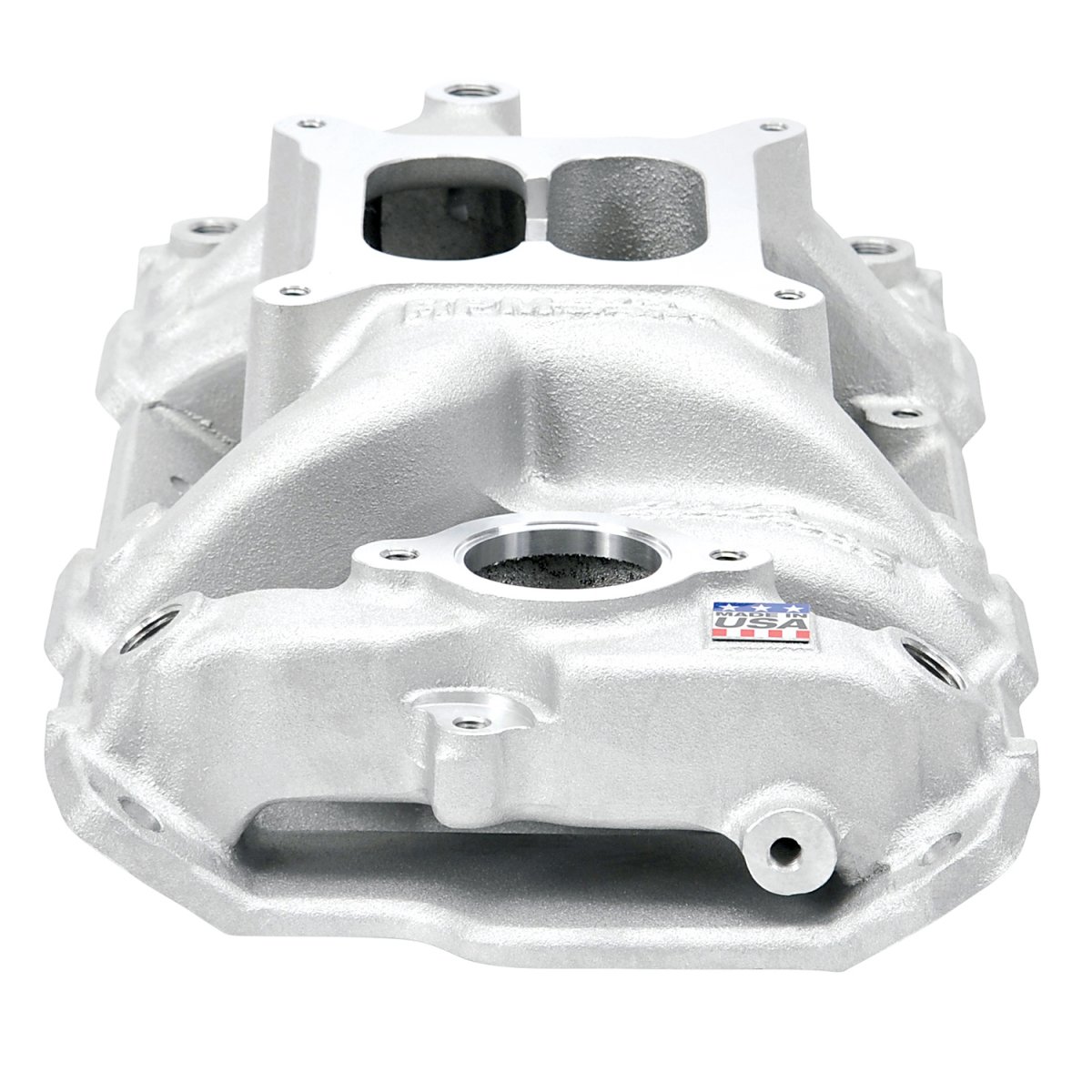

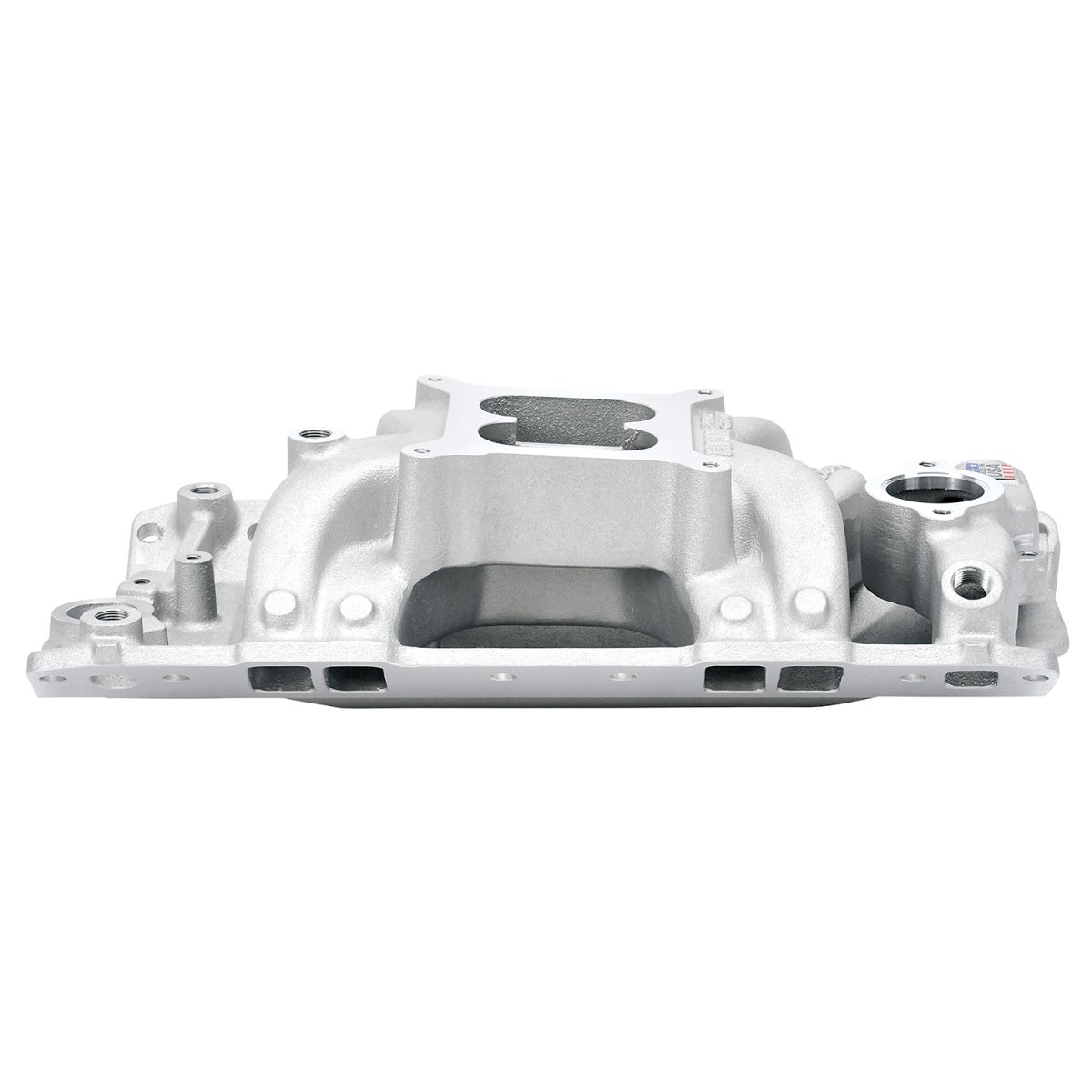

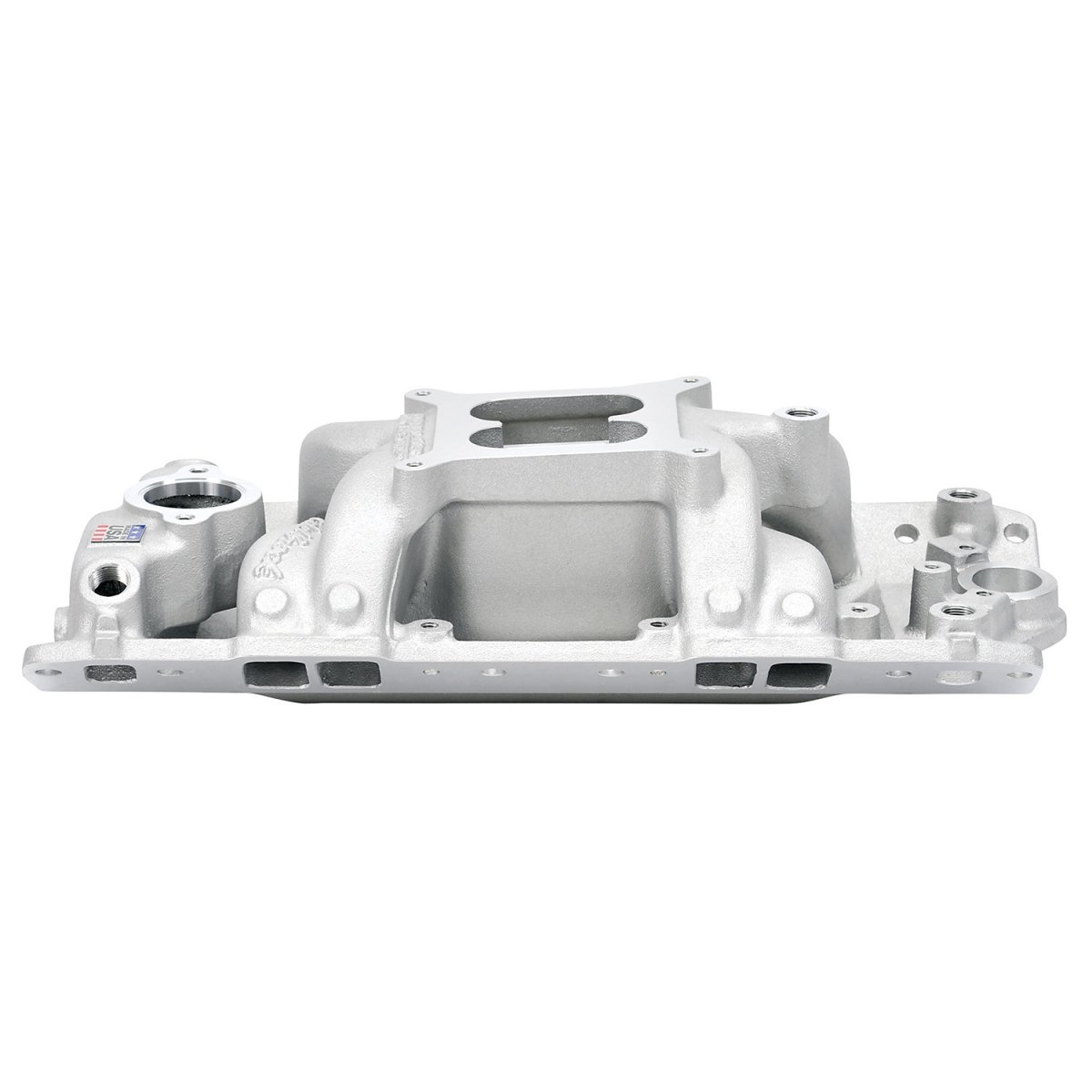

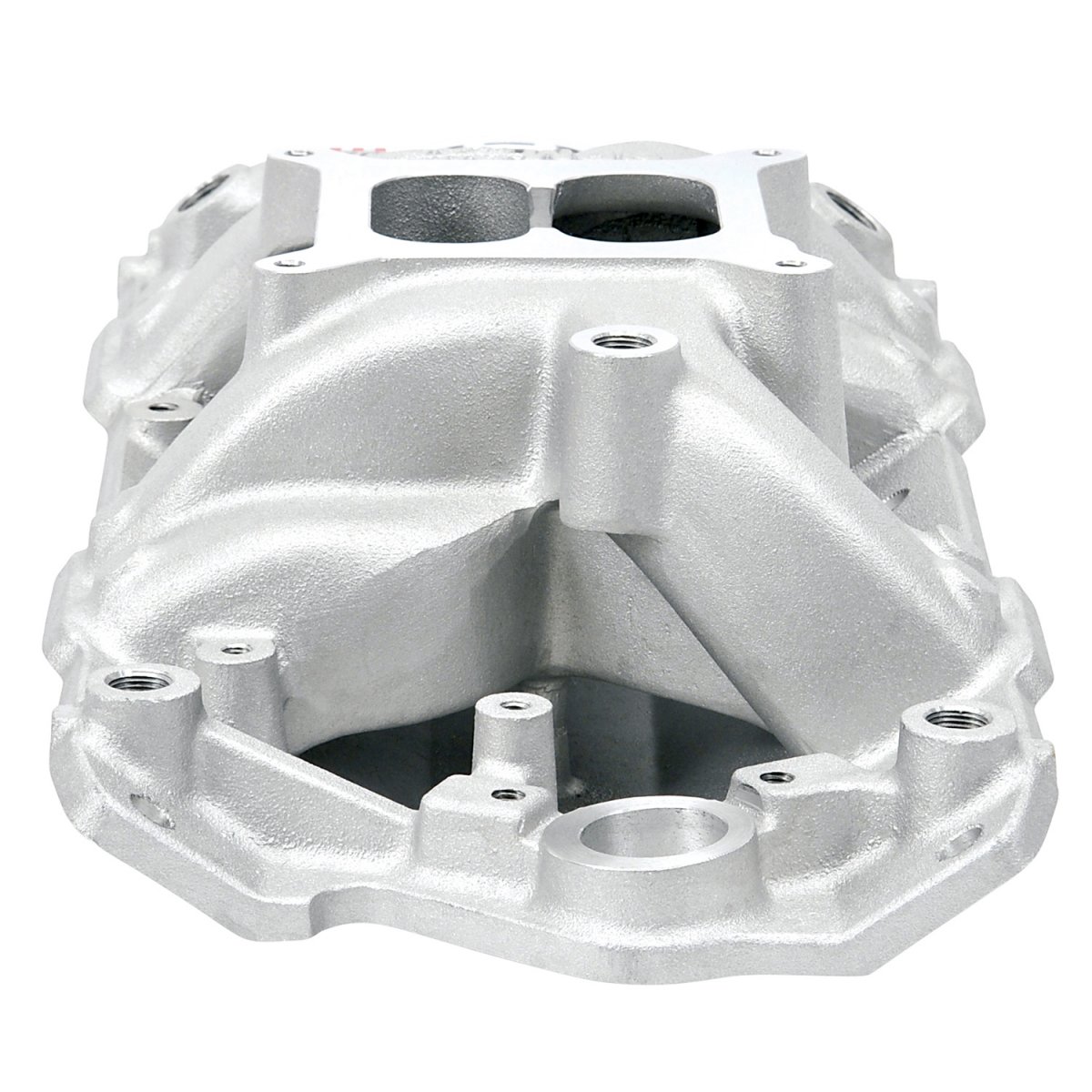

Edelbrock 7501 RPM Air-Gap insug är designade för 1955-86 262-400 Cheva motorer. Det vinnande Air-Gap konceptet har samma vinnande teknologi som används på Victor seriens tävlingsinsug. Air-Gap designen är för att separera insugsrör från den varma motorn, som resulterar i kallare och tätare luft för mer effekt.

Lämplig förgasare till detta insug, Edelbrock Thunder Series AVS eller Performer Series-förgasare, 650-800 cfm.

• RPM Air Gap,
• Square Bore,
• Dual Plane,
• Aluminum,
• Natural,
• Basic Operating RPM Range: 1,500-6,500
• Intake Manifold Height: 4.720 in.
• Small Block Chevy.

Manifold ht: A-4.20", B-5.25" (same as #7101); Carb pad height: 4.72"; Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 or #8036 for 1972-78.; Port exit dimensions: 1.14" x 1.95"; Recommended intake gasket: Edelbrock #7201.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Use #8504 Edelbrock bolt kit; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Will not fit under stock Corvette hood.; Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

Passar Chevy SB 1955-86 262-400.

Säljes styckvis.
