Holley Sniper 2 Power Distribution Module (PDM)

Holley Sniper 2 Power Distribution Module (PDM).

Holley har tagit fram denna modul som används som kopplingscentral när man installerar Holley Sniper-system. Med denna blir det mycket enklare att montera systemet och man får ett klart proffsigare resultat då allt det elektriska samlas i en gemensam punkt.

Läs gärna mer om systemet på Holleys hemsida!

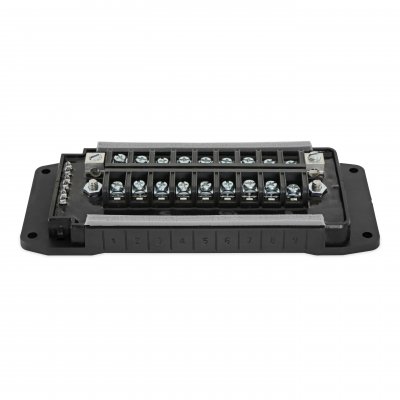

The Power Distribution Module (PDM) is a perfect accessory that removes the manual process of connecting all your electrical wires and moving them into a module for an easier electrical installation. Simply slide the stripped wire ends under the correct spot and adjust the set screw. You have the option to also have it distribute power to your Holley EFI fuel pump and a single fan (2nd fan can be connected, refer to installation instructions). The option of adding two additional 2 amp circuits for powering low current accessories like gauges, trigger relays, etc. is also provided. On the lid of the PDM is an easy to read diagram of where to connect the wires for your inputs and outputs. Mount the PDM for an impressive polished look and you're all set.

Features:

• Provides battery+, battery-, and switched connections for many components within a Sniper 2 installation (throttle body, fuel pump, HyperSpark, fan, etc.)
• 3 Relay Channels: 15A Powertrain (Sniper 2 throttle body and ignition system), 25A (Fuel pump output), and 25A (Fan output)
• LED status indicators for reviewing any live errors at a quick glance

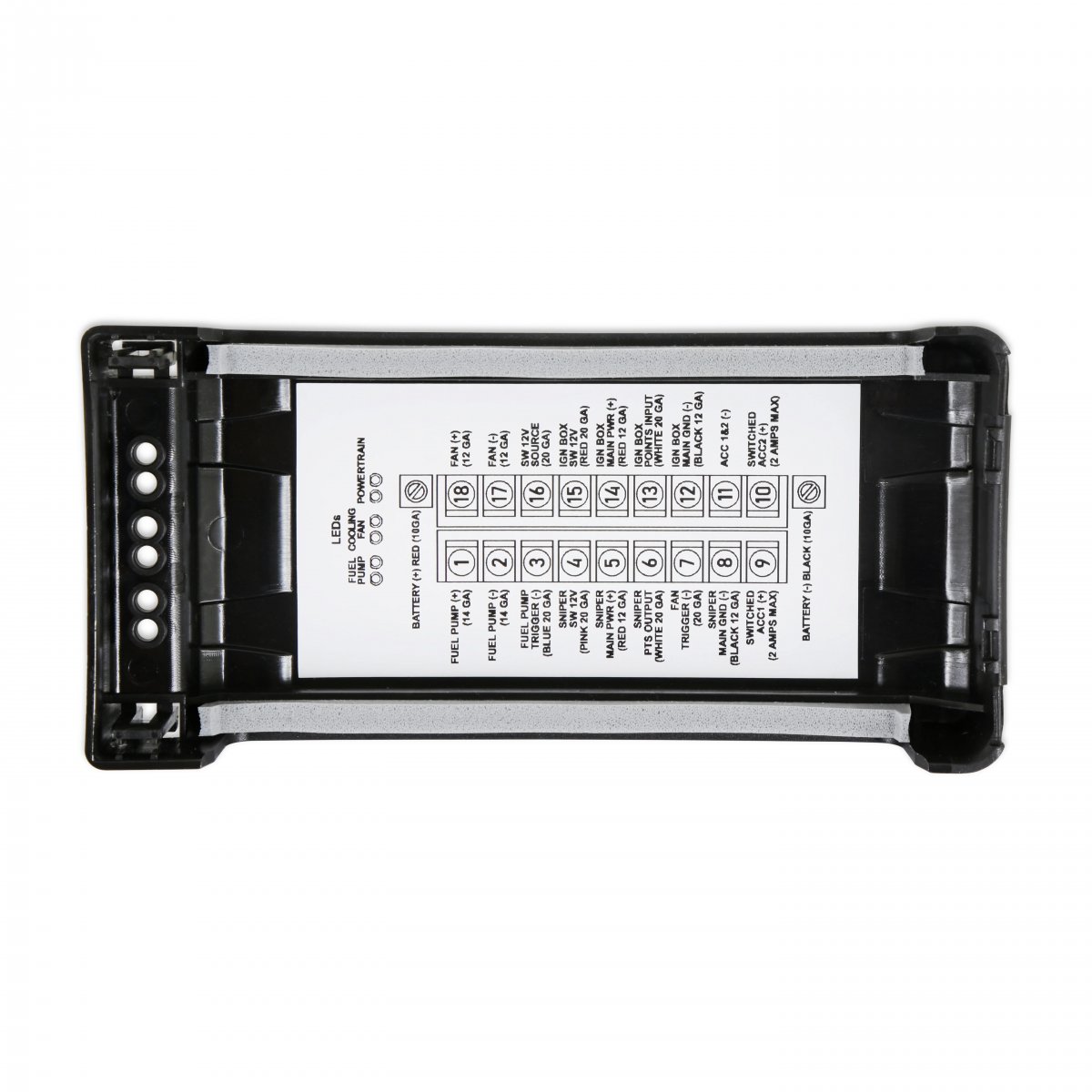

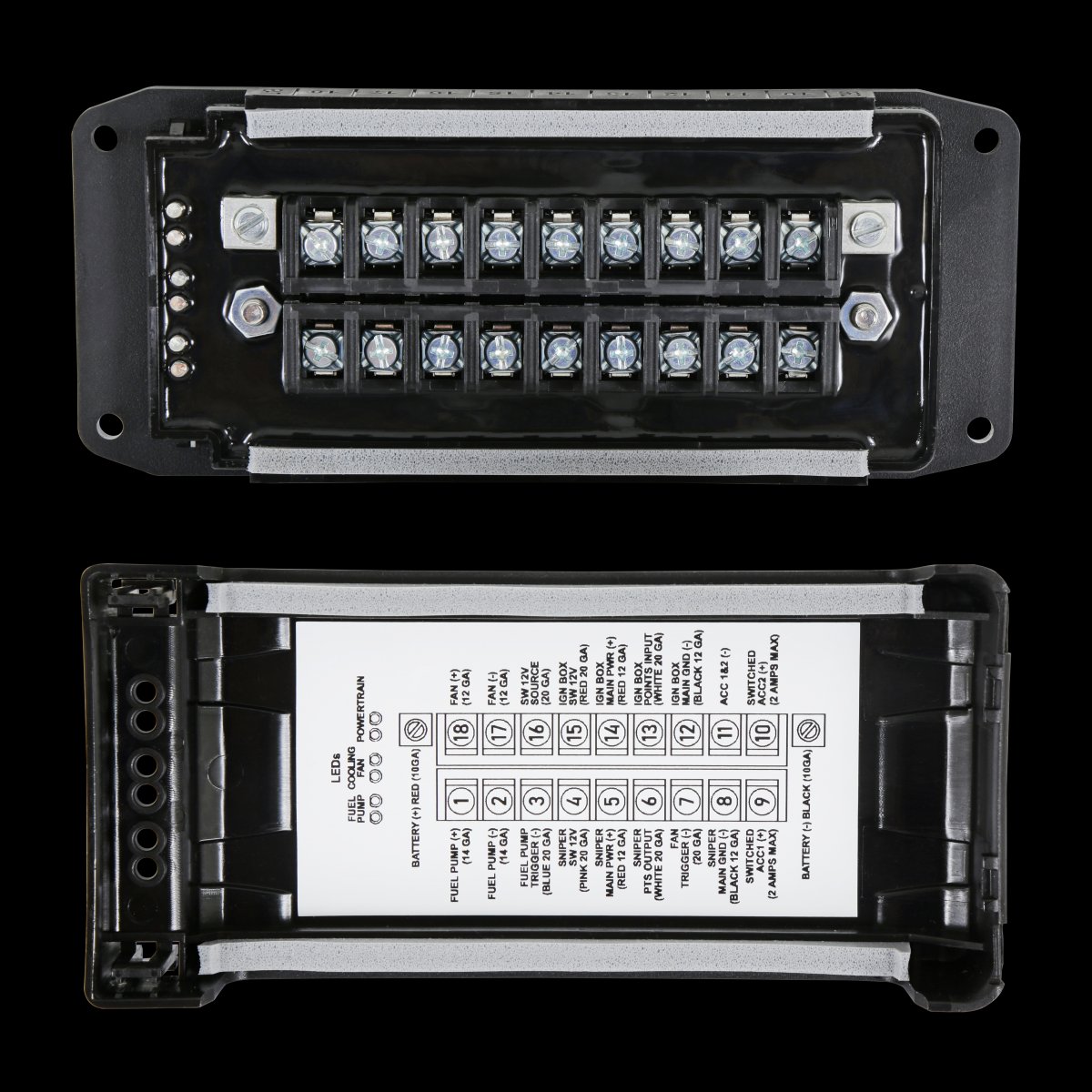

• Removable cover for easy accessibility with wiring diagram built into the lid,
• Requires 558-190 when adding to Sniper 2 base kits.

The Sniper PDM will have 100 mA or less draw when connected to the battery, and it is recommended for cars that sit for longer periods of time before being driven, to use a trickle charger while sitting. The PDM’s compact and sealed design can be mounted under the hood in a location not exposed to direct heat sources, such as the exhaust system. Use the supplied mounting hardware to secure the PDM into place.

Säljs styckvis.
