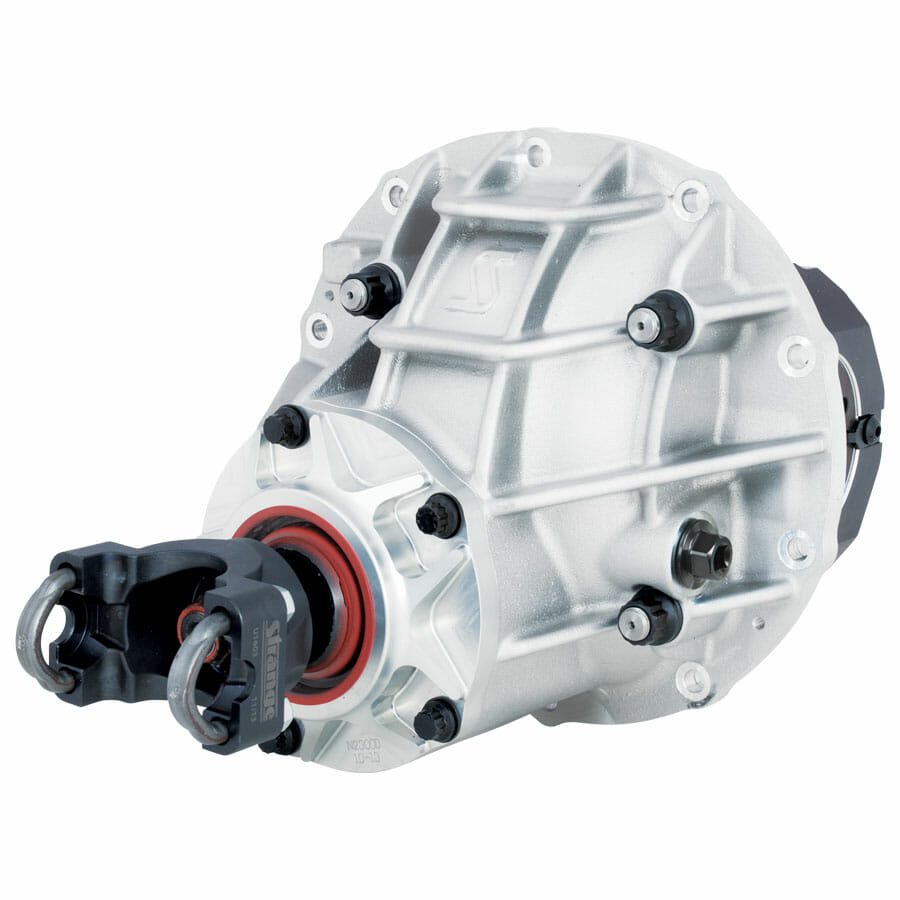

Strange HD Pro Aluminum Center Section, 35 spline, spole, 3,25

Strange HD Pro Aluminum Center Section, 35 spline, spole, 3,25.

En biffig men lätt Third Member från Amerikanska Strange. Heavy Duty tillverkad i smidd Aluminium och lättviktsspole och uppgraderad med HD överfall till knutkorset. Den är helt komplett med spole och utväxling, bara att bulta i.

• Antal Splines: 35,
• Differential: Spole,
• Utväxling: 3.25,
• Passande axel: 3.250″ bore – 35 spline
• L/W Steel Spool,
• Chrome Moly Yoke
• Fabrikat: Strange.

Aluminum Pinion Support with Spool, Standard Gear, and 1350 Series Yoke

The Strange HD Pro Ford 9 inch Aluminum Third Member With Sppol is designed for Drag Race applications and for the most abusive Hi-Performance street/strip applications.

As with all Strange aluminum cases, it is crafted from 206-T4 heat treated aluminum. This premium aluminum has a 12% higher yield strength and a 32% higher tensile strength compared to commonly used 356-T6 aluminum.

The billet aluminum pinion support has a unique oil channel that is machined 360º into the support to maximize oil flow to the pinion bearings as well as a large slot in the front to further boost oil circulation. The support is in contact with the bore of the case in two locations as opposed to one as found in normal cases. This additional contact area holds the pinion shaft much more securely resulting in better bearing and gear life. The tail bearing is oversized to handle more load and greater RPM than a stock tail bearing. Billet aluminum main caps encapsulate chrome-moly studs, provide the utmost support for the carrier bearings and significantly reduce ring gear deflection.

HD Pro Aluminum Center Section

• With L/W Steel Spool, Standard Gear & Chrome Moly Yoke
• This Center Section May Not Fit Your Housing

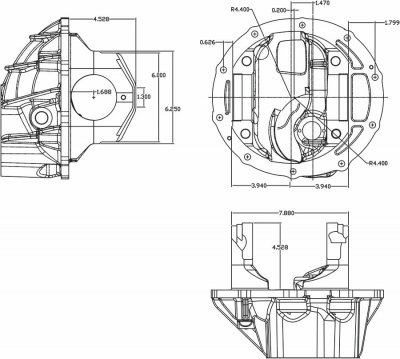

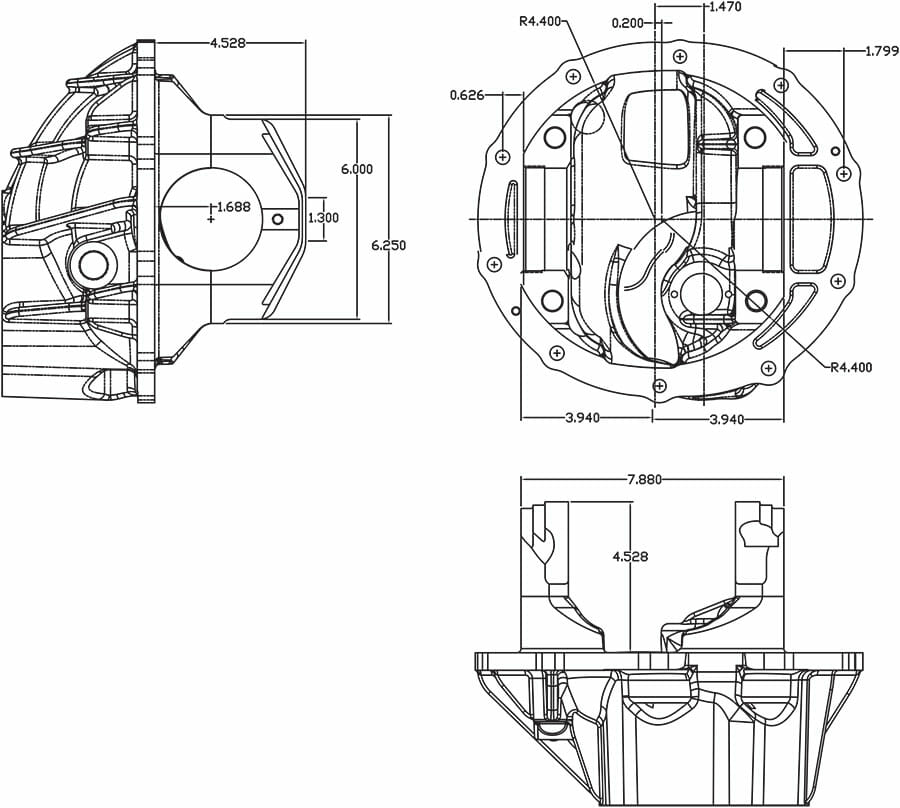

• Please refer to housing clearance diagram

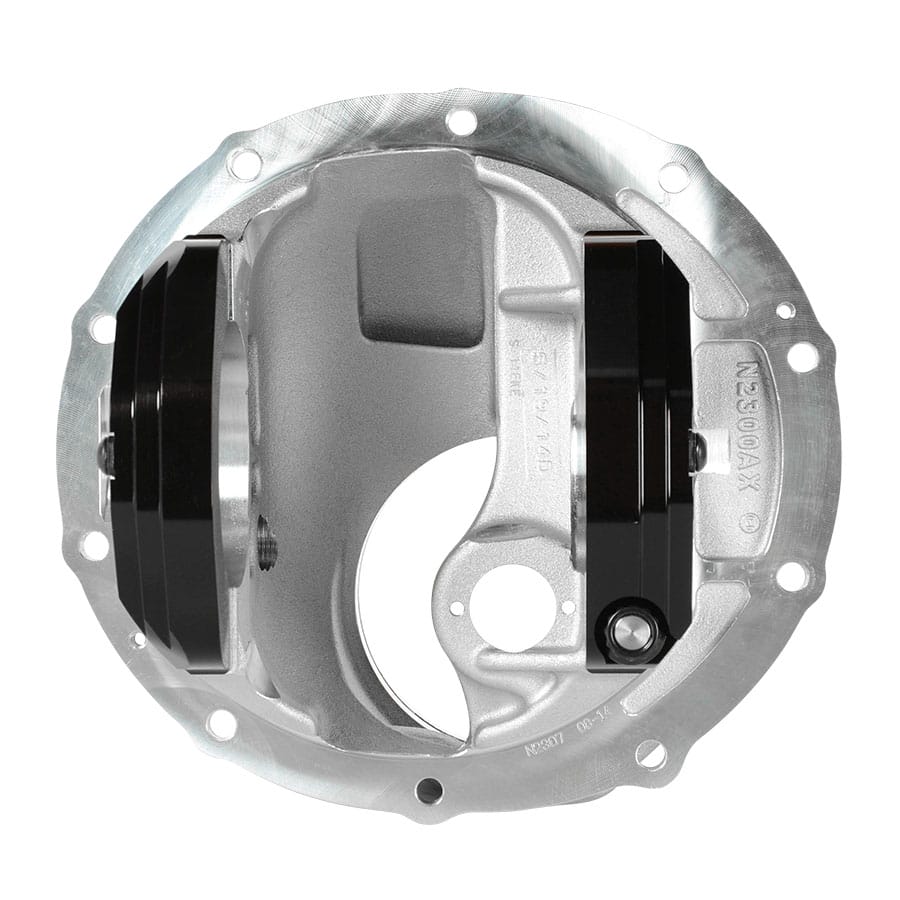

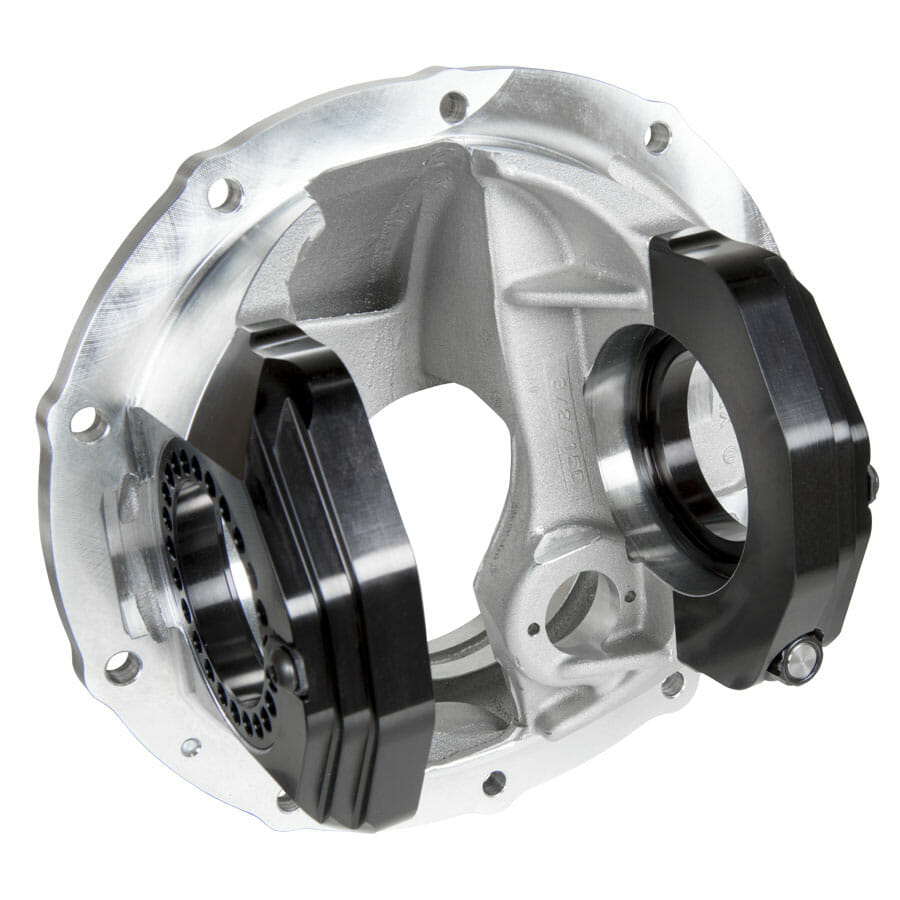

• HD Pro Case
• 3.250″ bore – 35 spline
• Manufactured from 206-T4 heat treated aluminum
• 12% higher yield and 32% higher tensile strength compared to 356-T6
• Large oil channel provides optimal lubrication to pinion bearings
• Heavily reinforced tail bearing area
• Chrome moly studs encapsulated by billet aluminum main caps
• Solid adjuster nuts
• Accepts over-sized tail bearing for heavy loads and high RPM
• N2322

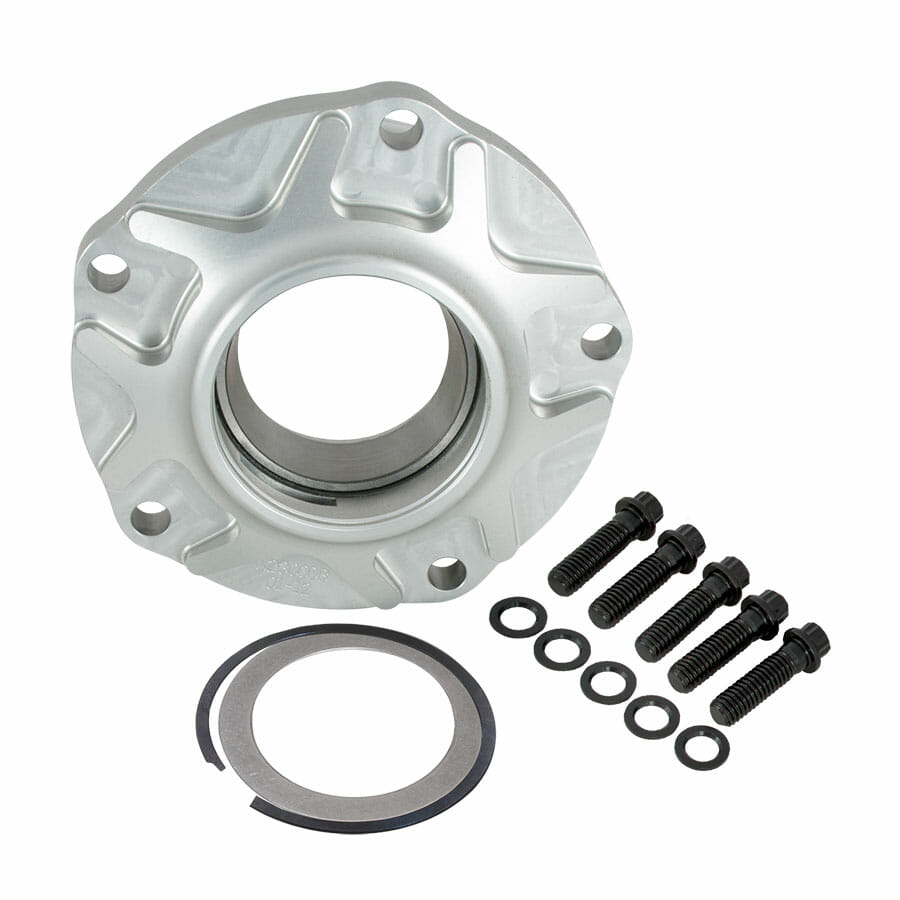

• Forged aluminum tapered bearing pinion support
• Pinion seal retaining plate and snap ring
• Races installed
• Support bolts, washers, and O-ring

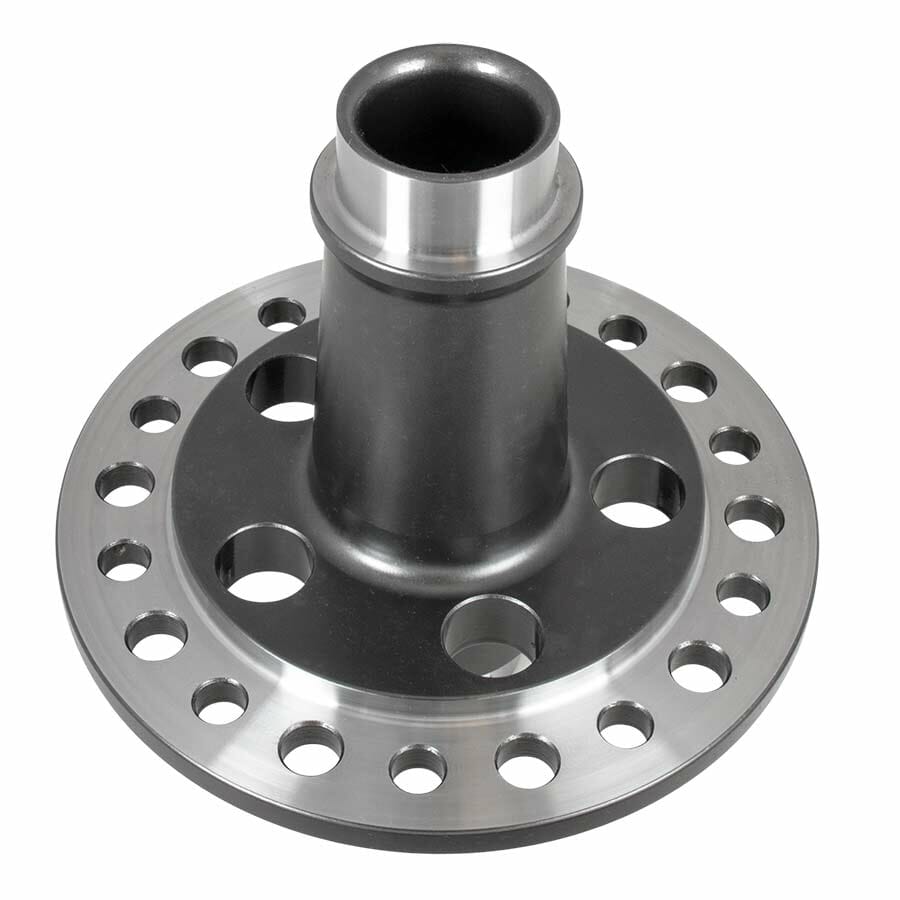

• Lightweight Steel Spool 35 spline – D1555
• Standard Gear Set: 3.25 ratio

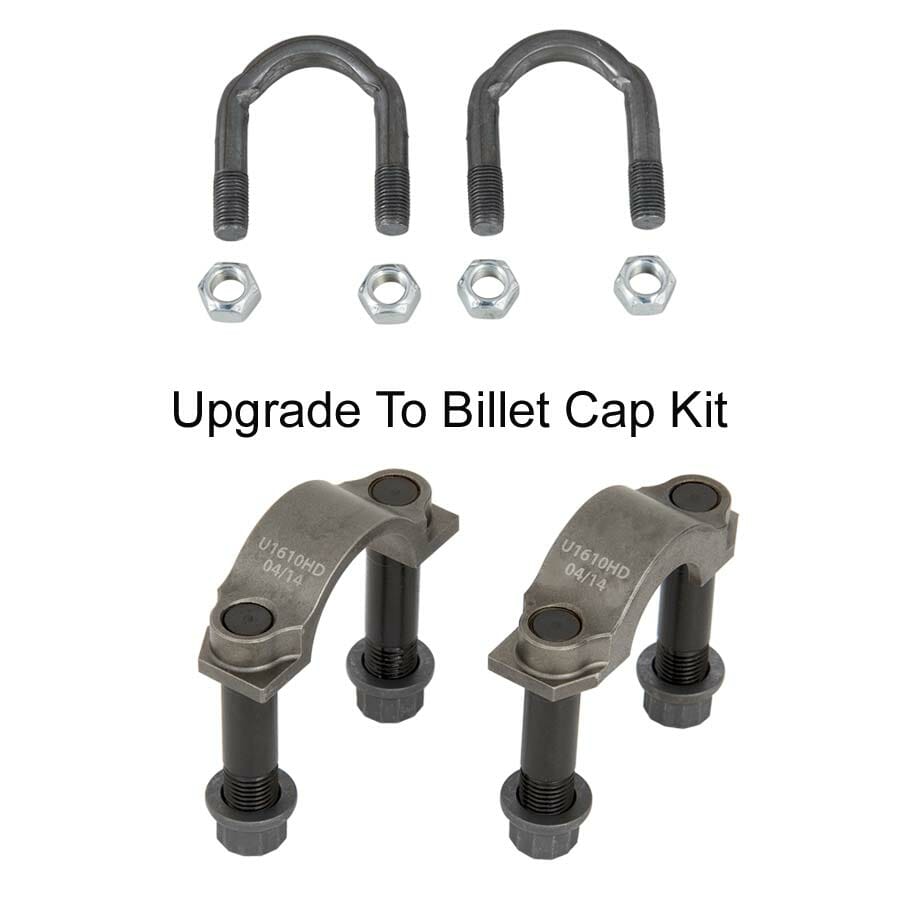

• Chrome Moly Yoke & U-Bolts – U1603 / U1610
• Designed for 1350 series U-joint
• Professionally Assembled
• Timken® Bearings & Races
• Grade 8 Ring Gear Bolts
• Ships in protective shipping container & HD cardboard box

Säljs styckvis.
