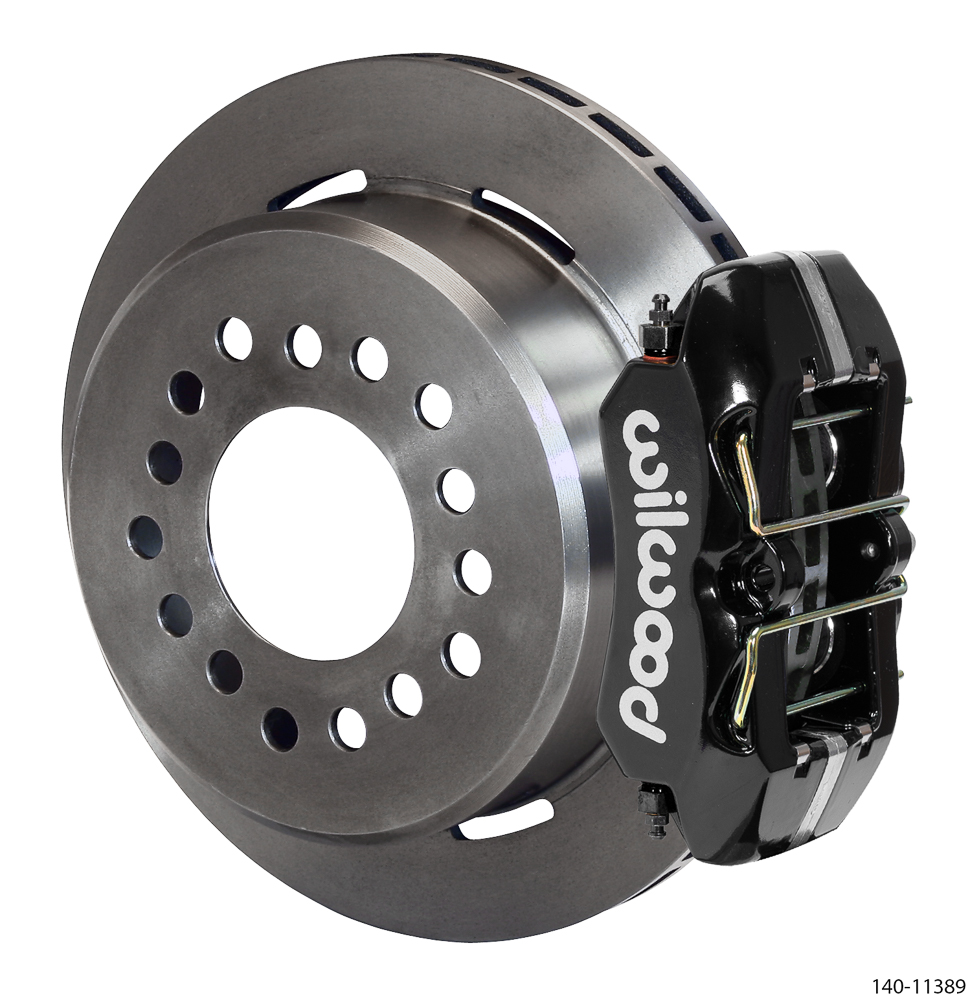

Wilwood skivbromskit med handbroms Big Ford 9", bak

Wilwood skivbromskit med handbroms Big Ford 9", bak.

Komplett kit för att montera skivbromsar med handbroms på Ford 9"-axel med stora Ford-ändarna (Big Ford New Style Flange).

• BRAKE KIT: Forged Dynapro Low-Profile Rear Parking Brake Kit

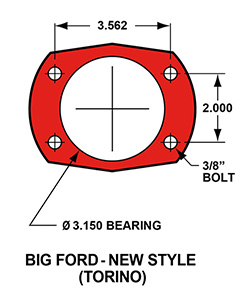

• Rear End Axle:    Big Ford New Style
• Axle Offset:    2.50"
• Mount Type:    Lug
• Caliper Type:    4 - Black Powder Coat
• Rotor Diameter:    11.00
• Min Wheel Diameter Req'd*: 14"

Notes

• Kit may fit some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
• Brake Kits are designed to fit OE Factory Spindles. Contact Wilwood if you are not using a factory spindle.
• Brake Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

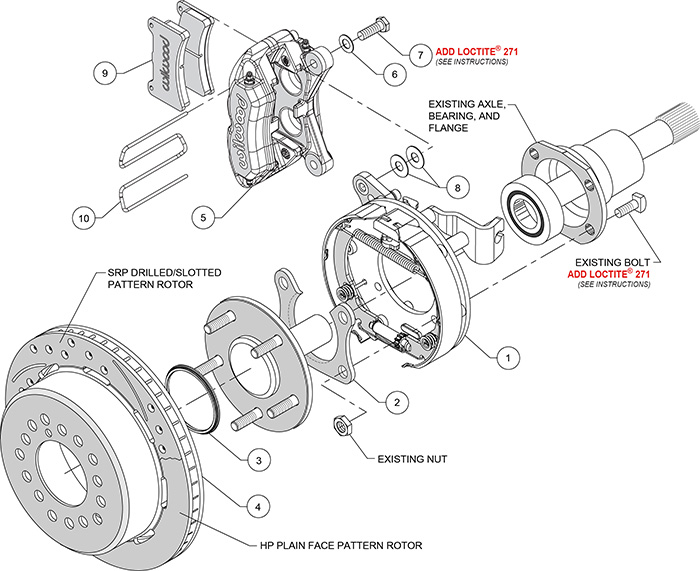

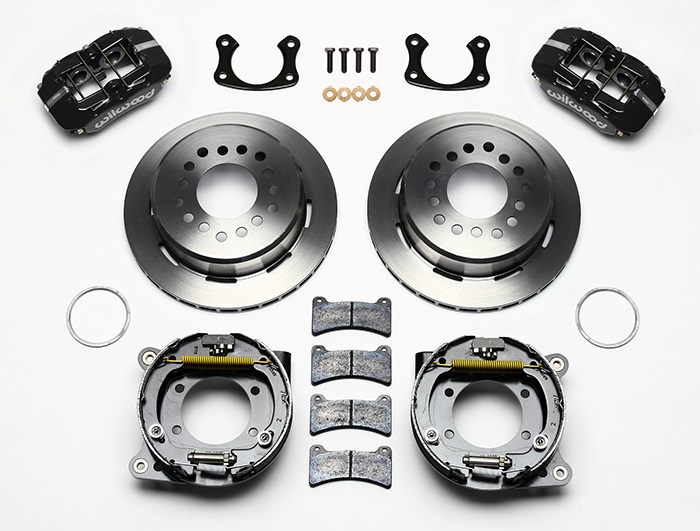

Kitet från Wilwood med 4-kolvsok innehåller:

• Skivor 160-11364, 2 st,
• Bromsok 120-12160, 2 st,
• Handbroms/okfästen: 249-11418 resp 249-11419,
• Belägg: 150-11363K, 1 kit,
• Adaptrar: 300-11337, 2 st,
• Bultsats med brickor,
• Retainrar: 250-11223, 2 st.

Forged Dynapro Low-Profile Rear Parking Brake Kit

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

För mer info, se Wilwoods produktsida!

Säljs i kit.
