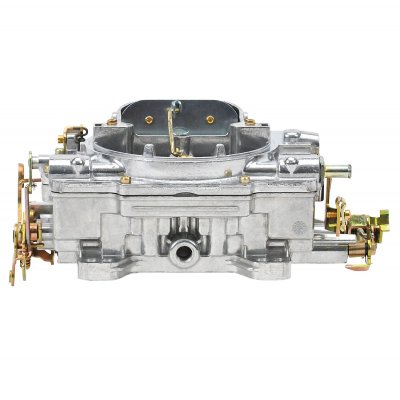

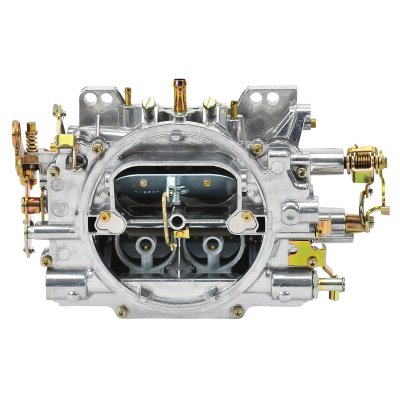

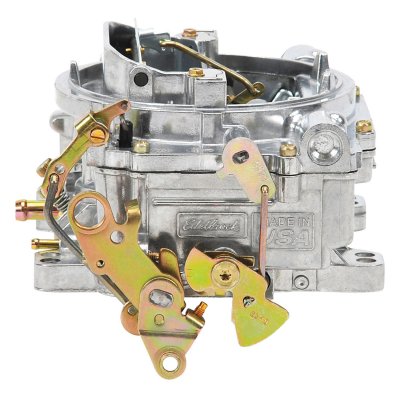

Edelbrock Performer 500 CFM, manuell choke

Series

Performer

Condition

New

Metering Rod Size

.065 x .047 in

Gasket Or Seal Included

Yes

Barrel Quantity

4 Barrel

Flange Type

Square

Secondary Jet Diameter

0.095

Main Venturi Diameter

1.19

Body Height

3.25

Bore Diameter

Primary Bore 1.44; Secondary Bore 1.69

Spring Force

5" Hg (Orange)

Installation Notes

• Recommended cubic inch displacement for small block dual quad applications is 302-400+ c.i.d.
• Recommended cubic inch displacement for big block dual quad applications is 396-502+ c.i.d.
• Electric choke #1478 can be added if needed
• Performer Series Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000
• Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components, unless specifically designed for use with alcohol fuels

Body Color

Satin Finish

Choke Type

Manual

Finish

Satin

Marine Approved

No

Material

Aluminum

CFM Rating

500 cfm

Primary Jet Diameter

0.086
